Machine Screws
stainless steel | carbon steel | alloy steel | specials
Phillips pan head machine screws from ITA Fasteners are made with stainless steel. This makes the screws resistant to corrosion and rust. These screws mostly find their application in metal to metal or high-density timber-to-metal fastening. They are commonly used in the automobile industry as well as in machinery equipment installation. It requires a pilot hole to be drilled before using the machine screws.
The slotted or Phillips head comes with a straight slot on the head and can be drilled or removed using a screwdriver. However, for ease of operation, we recommend using a Phillips head screwdriver. This ensures minimum damage to the surface of operation. We have stock of these screws in several sizes depending on the requirement. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant. Our screws comply with the most stringent quality standards in India for fasteners. We also undertake custom orders for different sizes and materials.
DIN 7985, ISO 7045
Metric: M2 to M8
Inches: 1/8” to 2BA

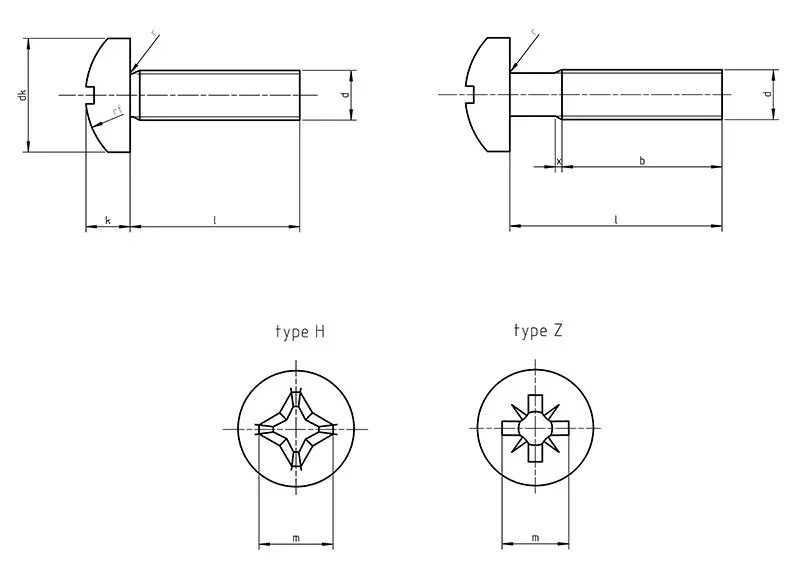

Legend:
b - length of the thread (at least)
l - length of bolt<
S - Washer width
d - the nominal diameter of the thread
k - head height
dk - head diameter
m - groove width
a - length undercut
x - thread run
r - Head radius
Makings:
Steel: 4,8
Stainless: A2,A4
Plastic: Plastic Pa
Non Ferrous: Brass
Thread: 6g
Notes:
Table according to DIN 7985:
dimensions in mm
| Thread d | M1,6 | M2 | M2,5 | M3 | (M3,5) | M4 | M5 | M6 | M8 | M10 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0,35 | 0,4 | 0,45 | 0,5 | 0,6 | 0,7 | 0,8 | 1 | 1,25 | 1,5 | ||
| a | max. | 0,7 | 0,8 | 0,9 | 1 | 1,2 | 1,4 | 1,6 | 2 | 2,5 | 3 | |
| b | 2 | P | 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 |
| 0 | ||||||||||||
| da | max. | 2,1 | 2,6 | 3,1 | 3,6 | 4,1 | 4,7 | 5,7 | 6,8 | 9,2 | 11,2 | |
| dk | nominal = max. | 3,2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| min. | 2,9 | 3,7 | 4,7 | 5,7 | 6,64 | 7,64 | 9,64 | 11,57 | 15,57 | 19,48 | ||
| k | nominal | 1,3 | 1,6 | 2 | 2,4 | 2,7 | 3,1 | 3,8 | 4,6 | 6 | 7,5 | |
| max. | 1,42 | 1,72 | 2,12 | 2,52 | 2,82 | 3,25 | 3,95 | 4,75 | 6,15 | 7,68 | ||
| min. | 1,18 | 1,48 | 1,88 | 2,28 | 2,58 | 2,95 | 3,65 | 4,45 | 5,85 | 7,32 | ||
| r | min. | 0,1 | 0,1 | 0,1 | 0,1 | 0,2 | 0,2 | 0,2 | 0,25 | 0,4 | 0,4 | |
| rf | approx. | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| v | approx. | 0,8 | 1,1 | 1,3 | 1,6 | 1,9 | 2 | 2,5 | 3 | 3,7 | 4,8 | |
| x | max. | 0,9 | 1 | 1,1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 | 3,2 | 3,8 | |
| Cross | No. | 0 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | |
| recess | ||||||||||||
| Type H | m | approx. | 1,8 | 2,5 | 2,7 | 3,1 | 4,2 | 4,6 | 5,3 | 6,8 | 9 | 10,2 |
| penetration depth | min. | 0,72 | 1,1 | 1,3 | 1,7 | 1,74 | 2,04 | 2,77 | 3,03 | 4,18 | 5,38 | |
| max. | 1,02 | 1,4 | 1,6 | 2 | 2,24 | 2,54 | 3,27 | 3,53 | 4,68 | 5,88 | ||
| Type Z | m | approx. | 1,8 | 2,4 | 2,6 | 3 | 4 | 4,3 | 5 | 6,7 | 8,8 | 9,9 |
| penetration depth | min. | 0,92 | 1,1 | 1,27 | 1,68 | 1,65 | 1,9 | 2,64 | 3,02 | 4,06 | 5,23 | |
| max. | 1,17 | 1,35 | 1,52 | 1,93 | 2,11 | 2,36 | 3,1 | 3,48 | 4,52 | 5,69 | ||
| l | Mass (7,85 kg/dm3), in kg per 1000 units, approximetely | |||||||||||
| nominal | min. | max. | ||||||||||
| 2 | 1,8 | 2,2 | ||||||||||
| 3 | 2,8 | 3,2 | 0,34 | |||||||||
| 4 | 3,75 | 4,25 | 0,37 | 0,62 | ||||||||
| 5 | 4,75 | 5,25 | 0,4 | 0,67 | 0,99 | 1,4 | ||||||
| 6 | 5,75 | 6,25 | 0,43 | 0,71 | 1,05 | 1,48 | 2,66 | |||||
| 8 | 7,7 | 8,3 | 0,49 | 0,8 | 1,17 | 1,63 | 2,91 | |||||
| 10 | 9,7 | 10,3 | 0,55 | 0,88 | 1,29 | 1,79 | 3,16 | 5,14 | 10,9 | |||
| 12 | 11,65 | 12,35 | 0,61 | 0,95 | 1,42 | 1,94 | 3,41 | 5,49 | 11,5 | 21,2 | ||
| -14 | 13,65 | 14,35 | 0,67 | 1,03 | 1,54 | 2,1 | 3,66 | 5,84 | 12,2 | 22,2 | ||
| 16 | 15,65 | 16,35 | 0,73 | 1,11 | 1,67 | 2,25 | 3,91 | 6,29 | 12,8 | 23,2 | ||
| -18 | 17,65 | 18,35 | 0,79 | 1,19 | 1,8 | 2,41 | 4,16 | 6,64 | 13,5 | 24,2 | ||
| 20 | 19,6 | 20,4 | 0,85 | 1,27 | 1,92 | 2,56 | 4,41 | 7 | 14,2 | 25,2 | ||
| -22 | 21,6 | 22,4 | 0,91 | 1,35 | 2,05 | 2,72 | 4,66 | 7,35 | 14,8 | 26,2 | ||
| 25 | 24,6 | 25,4 | 1 | 1,47 | 2,25 | 2,94 | 5,03 | 7,87 | 15,8 | 27,7 | ||
| -28 | 27,6 | 28,4 | 1,09 | 1,59 | 2,5 | 3,24 | 5,4 | 8,4 | 16,8 | 29,2 | ||
| 30 | 29,6 | 30,4 | 1,18 | 1,71 | 2,63 | 3,44 | 5,7 | 8,75 | 17,5 | 302 | ||
| 35 | 34,5 | 35,5 | 3,4 | 3,94 | 6,5 | 9,6 | 19,1 | 32,7 | ||||
| 40 | 39,5 | 40,5 | 4,44 | 7,3 | 10,5 | 20,7 | 35,7 | |||||
| 45 | 44,5 | 45,5 | 8 | 11,4 | 22,3 | 37,7 | ||||||
| 50 | 49,5 | 50,5 | 8,7 | 12,3 | 23,9 | 41,2 | ||||||
| 55 | 54 | 56 | 25,4 | 43,7 | ||||||||
| 60 | 59 | 61 | 27 | 46,2 | ||||||||

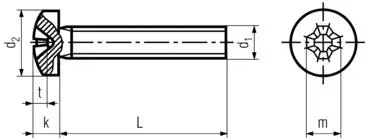

| d1 | d2 max. | k max. | Phillips | m approx. | t min. | t max. | Proof Load N |
|---|---|---|---|---|---|---|---|
| M1.6 | 3.2 | 1.42 | 0 | 1.8 | 0.72 | 1.02 | 370 |
| M2 | 4 | 1.72 | 1 | 2.5 | 1.1 | 1.4 | 600 |
| M2.5 | 5 | 2.12 | 1 | 2.7 | 1.3 | 1.6 | 990 |
| M3 | 6 | 2.52 | 1 | 3.1 | 1.7 | 2 | 1560 |
| M3.5 | 7 | 2.82 | 2 | 4.2 | 1.74 | 2.24 | 2100 |
| M4 | 8 | 3.25 | 2 | 4.6 | 2.04 | 2.54 | 2720 |
| M5 | 10 | 3.95 | 2 | 5.3 | 2.77 | 3.27 | 4400 |
| M6 | 12 | 4.75 | 3 | 6.8 | 3.03 | 3.53 | 6230 |
| M8 | 16 | 6.15 | 4 | 9 | 4.18 | 4.68 | 11400 |
| M10 | 20 | 7.68 | 4 | 10.2 | 5.38 | 5.88 | 18000 |
