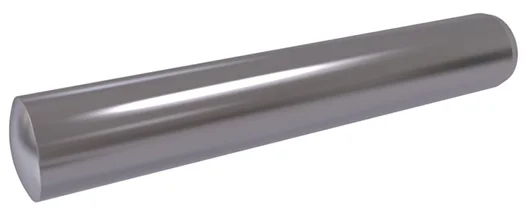

Solid Dowel Pins

Solid Dowel Pins


Description:

Solid Dowel pins from ITA fasteners are headless and come with lag threads at both ends. Our solid dowel pins are aptly designed to be inserted in pre-drilled pilot holes. To reduce the impact on surfaces, the end of the threads on either side is designed as a taper. The most common application of solid dowel pins is wood to wood fastening. Our products are engineered to reduce the impact on the surface beyond the point of impact.

The headless pins come with spiral grooves which allow the release of trapped air and can be easily removed with a screw. They are also used in applications which require high accuracy wherein the fastener is held in place using radial force for a lasting hold. To ensure consistency with its wide range of applications, ITA fasteners provide solid Dowel pins in various sizes and materials. In addition to that, custom pins can be developed for precision requirements.


Dimensional Standards:

DIN 6325, IS 6669


Size range:

Metric: M2 to M16
Inches: Nil

Solid Dowel Pin Dimensions

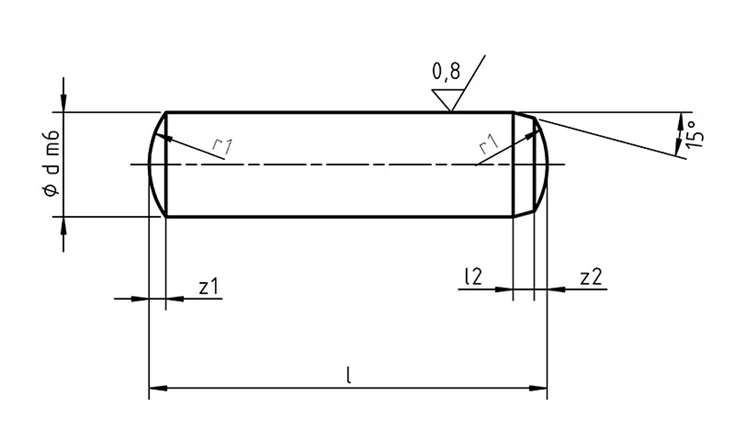

Dowel pin Dimensions of DIN 6325 Type 1

DIN 6325 - Dowel Pins

Equivalent norms: ISO 8734; CSN 22152; UNI 6364A;

Legend:
z1 - taper
l1 - lenght
z2 - length of the round end
l2 - length of chamfer
R - radius
D - pin diameter
Makings:
Steel: 550-650 HV30
Stainless: -
Plastic: -
Non Ferrous: -
  Thread: -
Notes: -
Table according to ISO 8734:
dimensions in mm

dm611,522,53456810121620
c=0,20,30,350,40,50,630,81,21,622,533,5
ltrade lengths
jmen.min.max.
32,753,25+
43,754,25++
54,755,25+++
65,756,25++++
87,758,25+++++
109,7510,25++++++
1211,512,5 ++++++
1413,514,5 +++++++
1615,516,5 +++++++
1817,518,5  +++++++
2019,520,5  +++++++
2221,522,5   +++++++
2423,524,5   +++++++
2625,526,5    +++++++
2827,528,5    +++++++
3029,530,5    +++++++
3231,532,5     ++++++
3534,535,5     ++++++
4039,540,5     +++++++
4544,545,5      ++++++
5049,550,5      +++++++
5554,2555,75       ++++++
6059,2560,75       ++++++
6564,2566,75        +++++
7069,2570,75        +++++
7574,2575,75        +++++
8079,2580,75        +++++
8584,2585,75         ++++
9089,2590,75         ++++
9594,2595,75         ++++
10099,25100,75         ++++

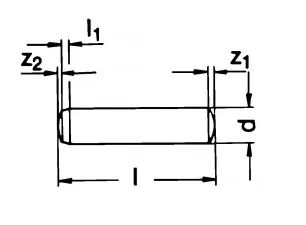

Dimensions of DIN 6325 type 2 dowel pin

DIN 6325 Type 2

Diameter11.522.534568101214162025
z2 ≈0.080.120.180.250.30.40.50.60.811.31.31.72
z1 ≈0.150.230.30.40.450.60.750.91.21.51.822.53
l10.40.50.60.70.811.21.51.822.52.534
Length (mm)Pkg.
