Spherical Washers with conical Seat

Description:

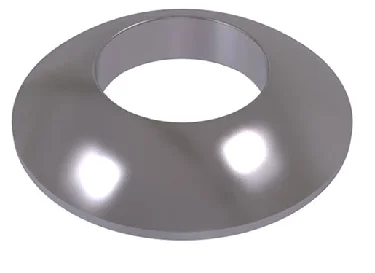

ITA Fasteners stocks spherical washers with conical seats. These are special types of washers on which a conical seat is permanently fastened to a spherical washer. They offer excellent functional safety to any component designed with it and ensure that the equipment is secured against frictional and other types of losses. They are also extremely easy to use and allow you to assemble the equipment very quickly.

Made with heat-treated stainless steel, carbon steel, or alloy steel, these screws are corrosion resistant and can be used in extremely hot or cold temperatures – even in underwater applications. They can be used in these temperatures without losing their electrical or mechanical properties. At ITA Fasteners, we undertake custom orders of any size and are committed to delivering it promptly to you.

Dimensional Standards:

DIN 6319

Size range:

Metric: M8 to M42
Inches: As Per Requirement

SPHERICAL WASHER WITH CONICAL SHEET

DIN 6319 - Spherical washers

Equivalent norms: PN 82026;

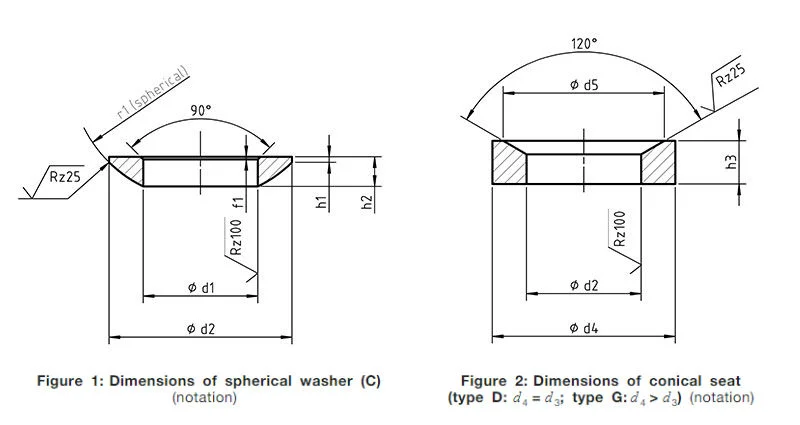

Legend:
d1 - Inner diameter
r1 - diameter of the sphere
h2 - Washer width
d2 - Inner diameter
h3 - Washer width
d4 - Outer diameter
d3 - Outer diameter
h1 - height
f1 - internal shrinkage
d5 - average shrinkage
Makings:
Steel: hardened steel
Stainless:A2
Plastic:-
Non Ferrous:-
Thread:-
Notes:
Table according to DIN 6319:
dimensions in mm

d1	d2	d3	d4		d5	f1	h1	h2	h3		r1	Weight kg/100pcs			Thread size	Maximum bolting force
H13	H13		Type D	Type G					Type D	Type G		C	D	G		in kN
6,4	7,1	12	12	17	11	0,3	0,7	2,3	2,8	4	9	0,09	0,14	0,56	M6	9
8,4	9,6	17	17	24	14,5	0,5	0,6	3,2	3,5	5	12	0,25	0,38	1,3	M8	17
10,5	12	21	21	30	18,5	0,5	0,8	4	4,2	5	15	0,47	0,65	1,86	M10	26
13	14,2	24	24	36	20	0,5	1,1	4,6	5	6	17	0,71	1,06	3,7	M12	38
15	16,5	28	28	40	24,8	0,5	1,2	5	5,6	6	22	1	1,8	4,8	M14	53
17	19	30	30	44	26	0,5	1,3	5,3	6,2	7	22	1,23	1,87	7	M16	73
21	23,2	36	36	50	31	0,5	2	6,3	7,5	8	27	2,08	3,2	9,4	M20	117
25	28	44	44	60	37	0,8	2,4	8,2	9,5	10	32	4,2	6,3	16,9	M24	168
31	35	56	56	68	49	0,8	3,6	11,2	12	12	41	8,7	13,3	23,8	M30	269
37	42	68	68	-	60	1	4,6	14	15	-	50	18,4	23,6	-	M36	394
43	49	78	78	-	70	1	6,5	17	18	-	58	29,7	36,5	-	M42	542
50	56	92	92	-	82	1	8	21	22	-	67	52,5	64,1	-	M48	714
