Wave Washers for Ball Bearings

Description:

Wave lock washers from ITA Fasteners are, like the name suggests, wavy washers designed to produce a compensating spring force when the washer is under force. They are excellent shock absorbers and prevent the disintegration of the assembly due to vibrations and small movements. They are engineered to deflect pressure in a linear range. This allows them to provide the perfect preload tension between two surfaces. Their operational limit is defined by their load rating or yield point.

The axial strain experienced by the washed due to the direct load placement is a function of the load and the spring placement. It is also called the spring rate. It determines the maximum possible load the washer can take. Simply put, if the washer has a higher number of waves, it can take on more lead. You can also use thicker washers to improve its load-bearing capacity. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.

Dimensional Standards:

DIN 935

Size range:

Metric: M4 to M10
Inches: As Per Requirement

Wave Lock Washer Dimensions

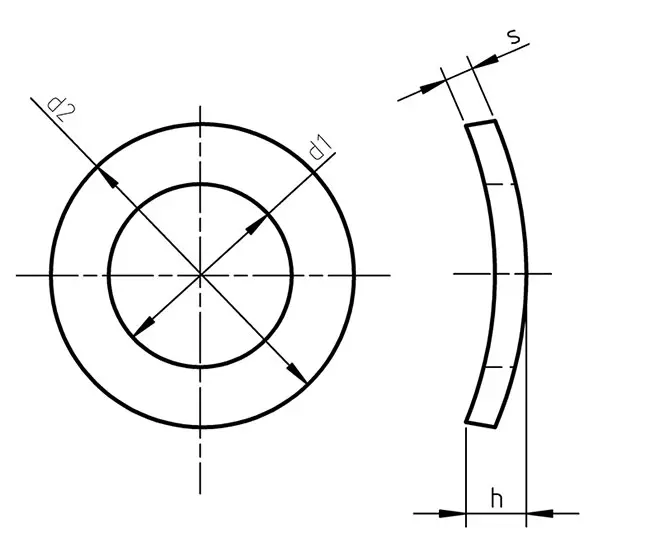

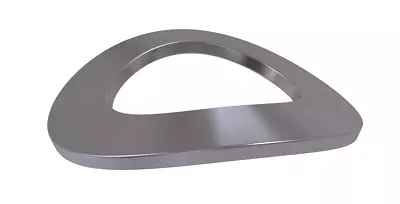

DIN 137 A - Spring washers curved, Form A

Equivalent norms: CSN 21733; UNI 8840A;

Legend:
d1 - Inner diameter
d2 - Outer diameter
S - Washer width
h - unloaded washer height
Makings:
Steel: steel
Stainless: A2,A4
Plastic: -
Non Ferrous: -
Thread: -
Notes:
Table according to DIN 137:
dimensions in mm

Nominal size	d1	d2	s		h		Weight kg/1000pcs	For size
Nominal size		H14	js16	Nominal size	tol.	min.	Weight kg/1000pcs	For size	max.
3	3,2	8	0,5	±0,05	0,8	1,6	0,166	M3
3,5	3,7	8	0,5	±0,05	0,9	1,8	0,154	M3,5
4	4,3	9	0,5	±0,05	1	2	0,193	M4
5	5,3	11	0,5	±0,05	1,1	2,2	0,286	M5
6	6,4	12	0,5	±0,05	1,3	2,6	0,318	M6
7	7,4	14	0,8	±0,06	1,5	3	0,7	M7
8	8,4	15	0,8	±0,06	1,5	3	0,762	M8
10	10,5	21	1	±0,07	2,1	4,2	2,04	M10
12	13	24	1,2	±0,07	2,5	5	3,01	M12
14	15	28	1,6	±0,08	3	6	5,51	M14
16	17	30	1,6	±0,08	3,2	6,4	6,03	M16
18	19	34	1,6	±0,08	3,3	6,6	7,84	M18
20	21	36	1,6	±0,08	3,7	7,4	8,43	M20
22	23	40	1,8	±0,1	3,9	7,8	11,9	M22
24	25	44	1,8	±0,1	4,1	8,2	14,5	M24
27	28	50	2	±0,1	4,7	9,4	21,1	M27
30	31	56	2,2	±0,1	5	10	29,5	M30
33	34	60	2,2	±0,1	5,3	10,6	33,1	M33
36	37	68	2,5	±0,15	5,8	11,6	50,2	M36

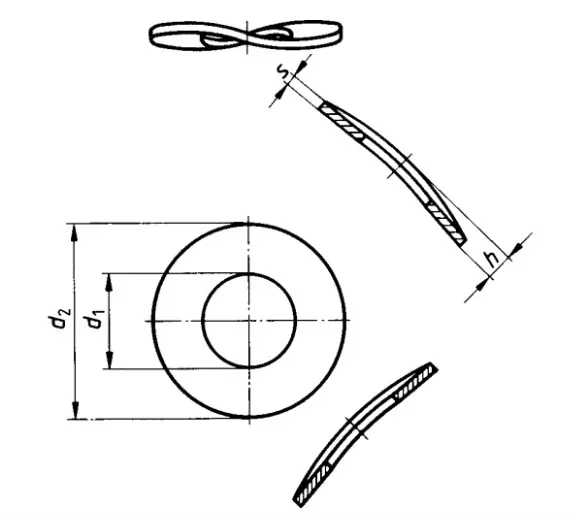

din 137 B - Spring Wave Washers, Form B

Equivalent norms: DIN 137 B; CSN 21733; UNI 8840B;

Legend:
d1 - Inner diameter
d2 - Outer diameter
S - Washer width
h - unloaded washer height
Makings:
Steel: Spring steel
Stainless: A2,A4
Plastic: -
Non Ferrous: -
Thread: -
Notes:
Table according to DIN 137:
dimensions in mm

Nominal size	For thread	d1 H14	d2 js16	s	h min.	h max.	Weight kg/1000pcs

3	M3	3,2	8	0,5 ± 0,05	0,8	1,6	0,166
3,5	M3,5	3,7	8	0,5 ± 0,05	0,9	1,8	0,154
4	M4	4,3	9	0,5 ± 0,05	1	2	0,193
5	M5	5,3	11	0,5 ± 0,05	1,1	2,2	0,286
6	M6	6,4	12	0,5 ± 0,05	1,3	2,6	0,318
7	M7	7,4	14	0,8 ± 0,06	1,5	3	0,7
8	M8	8,4	15	0,8 ± 0,06	1,5	3	0,762
10	M10	10,5	21	1 ± 0,07	2,1	4,2	2,04
12	M12	13	24	1,2 ± 0,07	2,5	5	3,01
14	M14	15	28	1,6 ± 0,08	3	6	5,51
16	M16	17	30	1,6 ± 0,08	3,2	6,4	6,03
18	M18	19	34	1,6 ± 0,08	3,3	6,6	7,84
20	M20	21	36	1,6 ± 0,08	3,7	7,4	8,43
22	M22	23	40	1,8 ± 0,1	3,9	7,8	11,9
24	M24	25	44	1,8 ± 0,1	4,1	8,2	14,5
27	M27	28	50	2 ± 0,1	4,7	9,4	21,1
30	M30	31	56	2,2 ± 0,1	5	10	29,5
33	M33	34	60	2,2 ± 0,1	5,3	10,6	33,1
36	M36	37	68	2,5 ± 0,15	5,8	11,6	50,2

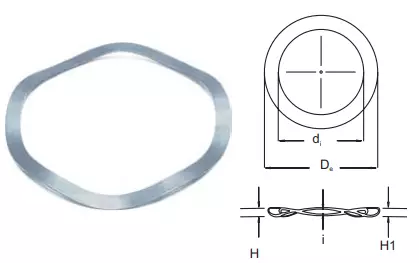

Wave washers for bearings

Part No.	Bearing Type	Dimension (mm)					Load(N)	Height 'H' At load"
Part No.	Bearing Type			D_e (min)	D_e (max)	d_i (min)	Load(N)	Height 'H' At load"	d_i (max)	T (+/-0.1)
WB-312604	6201	31.20	31.50	26.50	26.90	0.4	70.60 - 105.90	1.5
WB-383304	6203	38.50	39.00	33.00	33.50	0.4	98.10 - 147.10	1.5
WB-453905	6204	45.50	46.00	39.50	40.00	0.5	117.70 - 147.10	1.5
WB-494005	6205 6304	49.50	50.00	40.50	41.00	0.5	247.20 - 223.70	2.5
WB-596005	6206 6305	59.70	60.30	49.70	50.30	0.5	176.60 - 264.90	2.0
WB-696005	6306	69.50	70.00	60.00	60.50	0.5	176.60 - 264.90	2.0
WB-776905	6308	77.50	78.00	69.50	70.00	0.5	235.40 - 353.20	2.5
WB-877705	6308	87.00	87.50	77.50	78.00	0.5	235.40 - 353.20	2.0
WB-998108	6309	99.20	99.70	81.50	82.00	0.8	266.80 - 400.20	2.0
WB-1098908	6310 6212	109.00	109.50	89.50	90.00	0.8	294.30 - 441.20	3.75
WB-1199908	6213	119.00	120.00	99.50	100.00	0.8	318.80 - 637.60	2.5
WB-12210508	6214	122.50	123.50	105.00	105.50	0.8	343.30 - 686.70	3.0
WB-15713409	6215 6218	157.50	158.50	134.50	135.50	0.9	441.40 - 882.90	3.0
WB-16814009	6318 6219	168.00	169.00	140.00	140.50	0.9	466.00 - 931.90	3.0

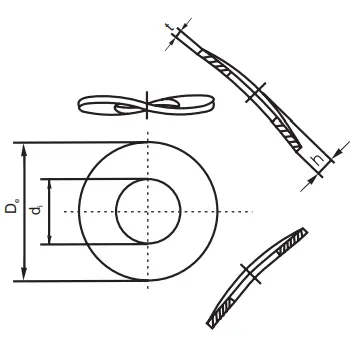

Wave washers as per DIN 137 B

For using between parts on shafts

Part No.	Sizes in Inches				Sizes in mm						Nominal Size
	D_e	d_i	t	h	D_e	d_i	Thickness (t)		Height (h)
Plain Oil Finish				(min)	js16	H14	Nominal size	Tolerance	min.	max.
WW-083205	0.315	0.126	0.020	0.031	8	3.2	0.5	+ /-0.05	0.8	1.6	M 3²
WW-083705	0.315	0.146	0.079	0.035	8	3.7	0.5	+ /-0.05	0.9	1.8	M 3.5²
WW-094305	0.354	0.169	0.087	0.039	9	4.3	0.5	+ /-0.05	1	2.0	M 4
WW-115305	0.433	0.209	0.087	0.043	11	5.3	0.5	+ /-0.05	1.1	2.2	M 5
WW-126405	0.472	0.252	0.098	0.051	12	6.4	0.5	+ /-0.05	1.3	2.6	M 6
WW-147408	0.551	0.291	0.020	0.059	14	7.4	0.8	+ /-0.06	1.5	3.0	M 7
WW-158408	0.591	0.331	0.020	0.059	15	8.4	0.8	+ /-0.06	1.5	3.0	M 8
WW-211010	0.827	0.413	0.020	0.083	21	10.5	1.0	+ /-0.07	2.1	4.2	M 10
WW-241312	0.945	0.512	0.020	0.098	24	13	1.2	+ /-0.08	2.5	5.0	M 12
WW-281516	1.102	0.591	0.031	0.118	28	15	1.6	+ /-0.08	3.0	6.0	M 14
WW-301716	1.181	0.669	0.031	0.126	30	17	1.6	+ /-0.08	3.2	6.4	M 16
WW-341916	1.339	0.748	0.039	0.130	34	19	1.6	+ /-0.08	3.3	6.6	M 18
WW-362116	1.417	0.827	0.047	0.146	36	21	1.6	+ /-0.010	3.7	7.4	M 20
WW-402318	1.575	0.906	0.063	0.154	40	23	1.8	+ /-0.010	3.9	7.8	M 22
WW-442518	1.732	0.984	0.063	0.161	44	25	1.8	+ /-0.010	4.1	8.2	M 24
WW-502820	1.969	1.102	0.063	0.185	50	28	2.0	+ /-0.010	4.7	9.4	M 27
WW-563122	2.205	1.220	0.063	0.197	56	31	2.2	+ /-0.010	5.0	10.0	M 30
WW-603422	2.362	1.339	0.071	0.209	60	34	2.2	+ /-0.010	5.3	10.6	M 33
WW-683725	2.677	1.457	0.071	0.228	68	37	2.5	+ /-0.015	5.8	11.6	M 36
