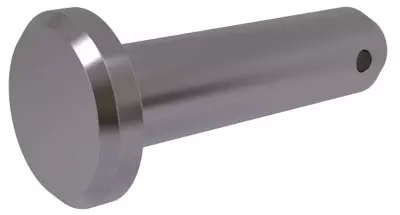

Clevis fasteners from ITA Fasteners are high precision fasteners which are used when a design needs a superior finish. The pins are designed using cold heading quality wire. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant. They can also be used in drastically extreme temperatures. These pins are similar to bolts but are only partially threaded and come with a cross hole to be fastened using a split pin.
Another component of the clevis pin is the tang, which fits in the clevis and held in place by the pin. When it is used in combination with the pin in the clevis, it is called a shackle. These pins are mostly used in the design on farming equipment and rigging sailboats. It is also used to create remote controls when the controls have to be attached to servos.
DIN 1444, ISO 2341
Metric: Nil
Inches: Nil
Legend:
l - pin lengthl - pin length
d - pin diameterd - pin diameter
r - radiusr - radius
d1 - diameter holes for cotter pind1 - diameter holes for cotter pin
dk - head diameterdk - head diameter
k - head heightk - head height
lh - distance from the head to the axis of the holelh - distance from the head to the axis of the hole
le - distance from the axis of the hole to facele - distance from the axis of the hole to face
dl - diameter holes for cotter pindl - diameter holes for cotter pin
c - taperc - taper
e - tapere - taper
Makings:
Steel: steel 125 - 245HVSteel: steel 125 - 245HV
Stainless: A2,A4
Plastic: -
Non Ferrous: -
Thread: -
Notes:

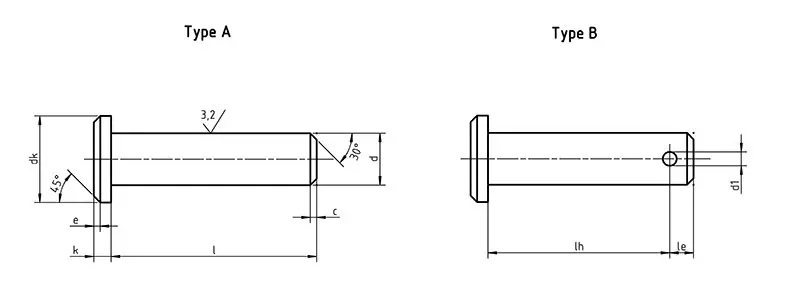

Table according to ISO EN 22341:
dimensions in mm
| d h11 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dk h14 | 6 | 8 | 10 | 14 | 18 | 20 | 22 | 25 | 28 | 30 | 33 | 36 |
| d1 H13 | 1 | 1,2 | 1,6 | 2 | 3,2 | 3,2 | 4 | 4 | 5 | 5 | 5 | 6,3 |
| c max. | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| e | 0,5 | 1 | 1 | 1 | 1 | 1,6 | 1,6 | 1,6 | 1,6 | 2 | 2 | 2 |
| k js14 | 1 | 1,6 | 2 | 3 | 4 | 4 | 4 | 4,5 | 5 | 5 | 5,5 | 6 |
| le min. | 2,2 | 2,9 | 3,2 | 3,5 | 4,5 | 5,5 | 6 | 6 | 7 | 8 | 8 | 9 |
| r | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 | 1 | 1 | 1 | 1 |
