Csk Phillips head self-tapping screws from ITA Fasteners are high strength and durable fasteners used for sheet metal applications. To provide a perfect assembly, the countersunk variation of the philip screw has to be used in conjunction with a countersunk hole. The usage of these screws requires a pre-drilled hole. The screws themselves are threaded with twisted gradation which makes it easy to install on the pilot hole. This allows the screws to be used in high-precision applications like machine and electrical component assembly. An essential characteristic of these screws is the well-spaced threads and pointed tip, which is called the gimlet point.
It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant. At ITA Fasteners we specialise in undertaking custom orders of large sizes. We also promptly deliver the same within the stipulated time frame.
Din 7982 C
Metric: No.2 to No.14
Inches: Nil

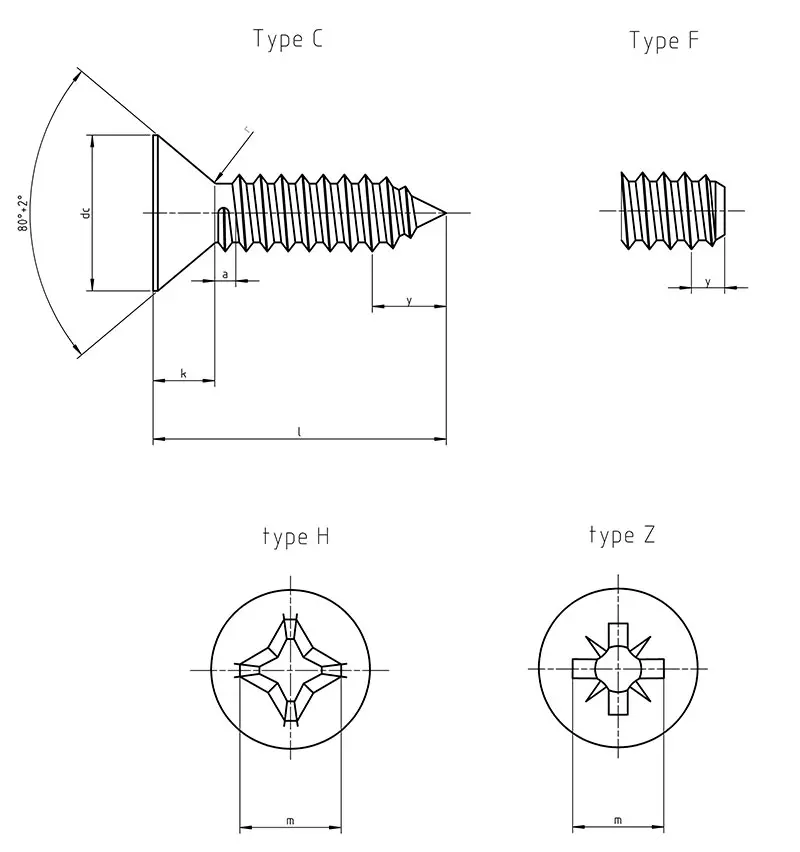

Legend:
l - length of bolt
d - the nominal diameter of the thread
k - head height
dk - head diameter
s - groove width
Makings:
Steel: steel - ISO 2702
Stainless: A2
Plastic: -
Non Ferrous: -
Thread: ISO 1478
Notes:
Table according to ISO 7050:
dimensions in mm
| Thread size | ST2,2 | ST2,9 | ST3,5 | (ST3,9) | ST4,2 | ST4,8 | ST5,5 | ST6,3 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| P | 0,8 | 1,1 | 1,3 | 1,3 | 1,4 | 1,6 | 1,8 | 1,8 | ||
| a | max. | 0,8 | 1,1 | 1,3 | 1,3 | 1,4 | 1,6 | 1,8 | 1,8 | |
| dk | nominal=max. | 4,3 | 5,5 | 6,8 | 7,5 | 8,1 | 9,5 | 10,8 | 12,4 | |
| min. | 4 | 5,2 | 6,44 | 7,14 | 7,74 | 9,14 | 10,37 | 11,97 | ||
| k | approx. | 1,3 | 1,7 | 2,1 | 2,3 | 2,5 | 3 | 3,4 | 3,8 | |
| r | max. | 0,8 | 1,1 | 1,4 | 1,5 | 1,6 | 1,9 | 2,1 | 2,4 | |
| Cross recess | No. | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | |
| Type H | m | approx. | 2,5 | 3 | 4,2 | 4,6 | 4,7 | 5,1 | 6,8 | 7,1 |
| Penetration deptd | min. | 1,02 | 1,4 | 1,62 | 2,03 | 2,11 | 2,59 | 2,95 | 3,33 | |
| max. | 1,32 | 1,7 | 2,12 | 2,53 | 2,62 | 3,1 | 3,53 | 3,91 | ||
| Type Z | m | approx. | 2,4 | 2,9 | 3,9 | 4,1 | 4,3 | 4,7 | 6,2 | 6,7 |
| Penetration deptd | min. | 1,1 | 1,48 | 1,6 | 1,85 | 2,05 | 2,64 | 2,72 | 3,38 | |
| max. | 1,35 | 1,73 | 2,06 | 2,31 | 2,51 | 3,1 | 3,18 | 3,84 | ||
| y | max. | Type C | 2 | 2,6 | 3,2 | 3,5 | 3,7 | 4,3 | 5 | 6 |
| Type F | 1,6 | 2,1 | 2,5 | 2,7 | 2,8 | 3,2 | 3,6 | 3,6 | ||
