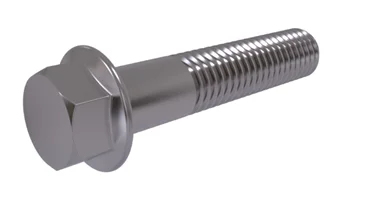

Flange Bolt

Description:

Flange bolts from ITA Fasteners got their name due to the circular flange which is engineered to be right under its head. These flanges distribute the load evenly between the different joints of the structure which is being fastened by it but remember to fasten all the joints using the same dimension of flange bolt. These ensure that the structure being built is impeccably designed for maximum load-bearing capacity. Like we mentioned before, these bolts are used for high strength applications. But if that is combined with the characteristics of stainless steel, then you get one of the most potent fasteners for extreme applications.

It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant. It can also be purchased in bulk, making it a cost-effective solution for every need.

Dimensional Standards:

DIN 6921

Size range:

Metric: DIN 6921
Inches: As Per Requirement

Flange Bolts Dimensions

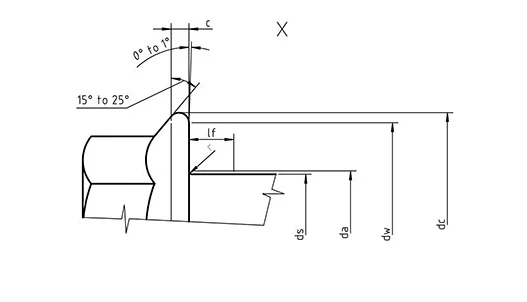

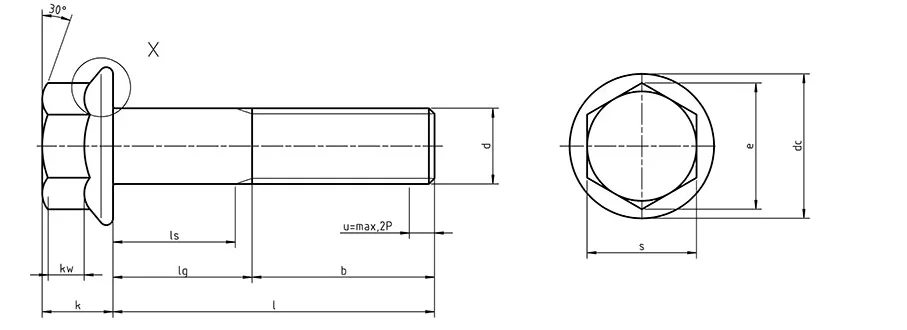

Dimensions of DIN 6921 - hexagon flange bolt

DIN 6921 - Hexagon Flange Bolts Metric

Legend:
d2 - the inner diameter of the ring
b - length of the thread (at least)
l - length og bolt
d - the nominal diameter of the thread
k - head height
s - size hex head turnkey
Makings:
Steel: 8.8,10.9
Stainess: A2
Plastic: -
Non Ferrous: -
Thread: 6g
Notes: -
Table according to DIN 6921:
Dimensions in mm

Thread		M5	M6	M8	M10	M12	(M14)	M16	M20
size d		-	-	M8 x 1	M10 x 1,25	M12 x 1,5	(M14x1,5)	M16 x 1,5	M20 x 1,5
		-	-	-	(M10 x 1)	(M10 x 1,25)	-	-	-
P		0,8	1	1,25	1,5	1,75	2	2	2,5
C	Min.	1	1,1	1,2	1,5	1,8	2,1	2,4	3
da	Min.	5	6	8	10	12	14	16	20
da	Max.	5,75	6,75	8,75	10,8	13	15,1	17,3	21,6
dc	Max.	11,8	14,2	17,9	21,8	26	29,9	34,5	42,8
dw	Min.	9,8	12,2	15,8	19,6	23,8	27,6	31,9	39,9
e	Min.	8,79	11,05	14,38	16,64	20,03	23,36	26,75	32,95
h	Max.	6,2	7,3	9,4	11,4	13,8	15,9	18,3	22,4
m	Min.	4,7	5,7	7,6	9,6	11,6	13,3	15,3	18,9
m´	Min.	2,2	3,1	4,5	5,5	6,7	7,8	9	11,1
s	Nominal size = max.	8	10	13	15	18	21	24	30
s	Min.	7,78	9,78	12,73	14,73	17,73	20,67	23,67	29,16
r	Max.	0,3	0,36	0,48	0,6	0,72	0,88	0,96	1,2

Thread d			M5		M6		M8		M10		M12		M14		M16		M 20
						-		-		M8 x 1		M10 x 1,25		M12 x 1,5		M14 x 1,5		M16 x 1,5	M20 x 1,5
						-		-		-		(M10 x 1)		(M12 x 1,25)		-		-	-
l			Shank lengtds

nominal dimension	min.	max.	ls min.	lg max	ls min.	lg max	ls min.	lg max	ls min.	lg max	ls min.	lg max	ls min.	lg max	ls min.	lg max	ls min.	lg max
10	9,71	10,29	-	2,4
12	11,65	12,35	-	2,4	-	3
16	15,65	16,35	-	2,4	-	3	-	4
20	19,58	20,42	-	4	-	3	-	4	-	4,5
25	24,58	25,42	5	9	2	7	-	4	-	4,5	-	5,3
30	29,58	30,42	10	14	7	12	-	8	-	4,5	-	5,3	-	6
35	34,5	35,5	15	19	12	17	6,75	13	-	9	-	5,3	-	6	-	6
40	39,5	40,5	20	24	17	22	11,75	18	6,5	14	-	10	-	6	-	6	-	7,5
45	44,5	45,5	25	29	22	27	16,75	23	11,5	19	6,25	15	-	11	-	6	-	7,5
50	49,5	50,5	30	34	27	32	21,75	28	16,5	24	11,25	20	6	16	-	12	-	7,5
55	54,4	55,6			32	37	26,75	33	21,5	29	16,25	25	11	21	7	17	-	9
60	59,4	60,6			37	42	31,75	38	26,5	34	21,25	30	16	26	12	22	-	14
65	64,4	65,5					36,75	43	31,5	39	26,25	35	21	31	17	27	6,5	19
70	69,4	70,6					41,75	48	36,5	44	31,25	40	26	36	22	32	11,5	24
80	79,4	80,6					51,75	58	46,5	54	41,25	50	36	46	32	42	21,5	34
90	89,3	90,7							56,5	64	51,25	60	46	56	42	52	31,5	44
100	99,3	100,7							66,5	74	61,25	70	56	66	52	62	41,5	54
110	109,3	110,7									71,25	80	66	76	62	72	51,5	54
120	119,3	120,7									81,25	90	76	86	72	82	61,5	74
130	129,2	130,8											80	90	76	86	65,5	78
140	139,2	140,8											90	100	86	96	75,5	88
150	149,2	150,8													96	106	85,5	98
160	159,2	160,8													106	116	95,5	108
180	179,2	180,8															115,5	128
200	199	201															135,5	148
