Studs (A193 b7 stud)

Double End Threaded Studs


Description:

ITA Fasteners is a leading A193 b7 stud supplier and manufacturer. Studs from ITA Fasteners are steel bolts which are threaded on both ends. After the stud is screwed and secured in the middle, two different objects can be secured on either side of the bolts. Made with stainless steel for increased durability, they are used for flange bolting using nuts on either side. These bolts are typically stronger than standard bolts as they are cast and forged with a single piece of metal.

The bolts find their application in industries like manufacturing, plumbing, construction, petrochemical and automobile manufacturing. But they can also be used for custom applications based on individual requirements. These bolts are galvanised and can be used in high temperature applications as well. Since these bolts offer the user with the option of attaching two objects to its ends, it can also be economical in large scale projects. Get in touch with us to place custom orders of any size.


Dimensional Standards:

DIN 938, DIN 939


Studs Dimensions

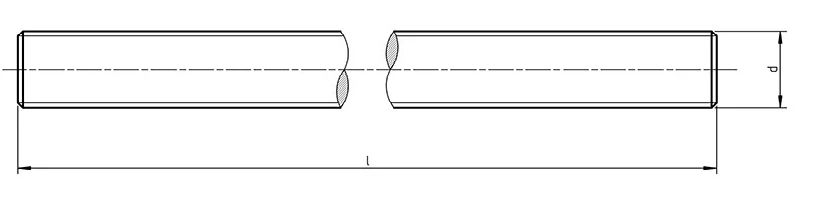

Full Thread Studs Dimensions

Full thread studs as per DIN 975,DIN 976,UNI 6610

dPL (mm)Weight kg/1000pcs
M20,4100018,7
M2,50,45100030
M30,5100044
M3,50,6100060
M40,7100078
M50,81000124
M611000177
M81 / 1,251000319
M101 / 1,25 / 1,751000500
M121,5 / 21000725
M141,5 / 21000970
M161,5 / 210001330
M181,5 / 2,510001650
M201,5 /2,510002080
M221,5 /2,510002540
M242/310003000
M272/310003850
M302 / 3,510004750
M332 / 3,510005900
M363/410006900
M393/410008200
M423 / 4,510009400
M453 / 4,5100011000
M483/5100012400
M523/5100014700
DIN 939 Dimensions

DIN 939 - Studs, with engagement length 1,25 x d

Equivalent norms: CSN 21176; PN 82131;

Thread dM4M5M6(M7)M8M10M12(M14)M16(M18)M20(M22)M24
 ----M8x1M10x1,25M12x1,25(M14x1,5)M16x1,5(M18x1,5)M20x1,5(M22x1,5)M24x2
 ------M12x1,5------
b156,57,59101215182022252830
b2 l<125mm14161820222630343842465054
b2 125>l<200mm20222426283236404448525660
b2 l>200mm-----4549535761656973
x11,7522,52,53,23,84,3556,36,36,37,5
x20,911,251,251,61,92,22,52,53,23,23,23,8
l js 15Weight (7,85/dm3) per 1000 units, in
 kg
12
14
16
18
202,03
222,233,65
252,524,115,85
282,824,576,529,49
303,024,886,9610,113,1
353,515,658,0711,615,124,2
404,016,429,1813,11727,241
45 7,1910,214,61930,345,464
50 7,9611,416,12133,349,97094,9
55  12,517,722,936,454,376,1103130
60  13,619,224,939,558,882,1111140180
65   20,726,942,663,288,2119150192242
70   22,228,945,767,694,2126160205257305
75    30,848,872,1100134170217272323
80    32,851,876,5106142180229287341
85     54,981112150190241302358
90     5885,4118158199254317376
95     61,189,8124166210266332394
100     64,294,3130174220279346412
110      103143190240303376447
120      112155205260328406483
130       167221280353436518
140       179237300377466554
150        253320402496589
160        269340427525625
170         360451555660
180         380476585696
190          501615731
200          525645767
Thread d(M27)M30(M33)M36(M39)M42(M45)M48(M52)
 (M27x2)M30x2(M33x2)M36x3(M39x3)M42x3(M45x3)M48x3(M52x3)
b1353842455052586065
b2 l<125mm60667278849096102110
b2 125>l<200mm667278849096102108116
b2 l>200mm79859197103109115121129
x17,5991010111112,512,5
x23,84,54,5555,55,56,36,3
l js 15Weight (7,85/dm3) per 1000 units, in
 kg
50
55
60
70
75430
80452
85475591
90497619776
95520646810
1005426748431011
11058773091010911326
1206327859771171142016471963
130677841104512511514175620882364
1407228961112133116071865221325063027
1507679521179141117011973233826483794
16081210071246149017952082246227903360
17085710621313157018892191258729323527
18090211181380165019822300271230743694
19094711731447173020762408283732163861
20099212291515181021702517296233584027
220108213401649197023582735321136424361
240117214501784213025452952346139274694
260126215621918228927333170371142115028
280135216722052244929203387396144955361
300 17842186260931083605421047795694
320  2321276932953822446050636028
340  2455292934834040471053476361
360   308836704257495956316695
380    38584475520959157028
400    40454692545961997362

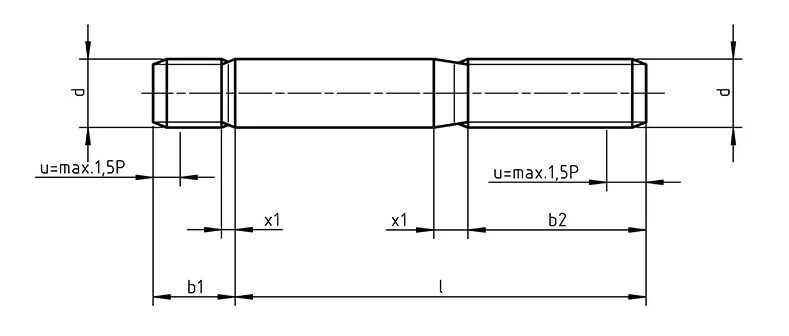

DIN 938 Dimensions

DIN 938 - Studs with engagement length 1 x d

Equivalent norms: CSN 21174; PN 82125; UNI 5911;

Thread dM3M4M5M6(M7)M8M10M12(M14)M16(M18)M20(M22)M24
 -----M8x1M10x1,25M12x1,25(M14x1,5)M16x1,5(M18x1,5)M20x1,5(M22x1,5)M24x2
 -------M12x1,5------
b13456781012141618202224
b2 l<125mm1214161820222630343842465054
b2 125>l<200mm1820222426283236404448525660
b2 l>200mm------4549535761656973
x11,251,7522,52,53,23,84,3556,36,36,37,5
x20,70,911,251,251,61,92,22,53,23,23,23,23,8
l js 15Weight (7,85 kg/dm3) per 1000 units, in kg
12
14
16
180,981
201,091,95
221,22,153,47
251,372,443,935,68
281,532,744,396,358,99
301,642,944,76,799,5912,5
35 3,435,477,911,114,823,2
40 3,936,249,0112,616,426,338,8
45  7,0110,114,118,429,443,260
50  7,7811,215,620,432,447,76689,6
55   12,317,122,435,552,172,197,5123
60   13,418,724,338,656,678,1105133170
65    20,226,341,76184,2113143182226
70    21,728,344,865,490,2121153195241287
75     30,347,969,996,3129163207256305
80     32,250,974,3102137173219271323
85      5478,8108145183232286340
90      57,183,2114153193244301358
95      60,287,6120161203256316376
100      63,392,1126169213269330394
110       101139184233293360429
120       110151200253318390465
130        163216273342420500
140        175232293367450536
150         247313392480571
160         263333417509607
170          353441539642
180          373466569678
190           491599713
200           515629749
Thread d(M27)M30(M33)M36(M39)M42(M45)M48(M52)
 (M27x2)M30x2(M33x2)M36x3(M39x3)M42x3(M45x3)M48x3(M52x3)
b1253032353842454852
b2 l<125mm60667278849096102110
b2 125>l<200mm667278849096102108116
b2 l>200mm79859197103109115121129
x17,5991010111112,512,5
x23,84,54,5555,55,56,36,3
l js 15Weight (7,85 kg/dm3) per 1000 units, in kg
50
55
60
65
70
75392
80414
85437553
90459580718
95482608752
100504636785942
11054969185210221228
1205947479191102132215501822
13063980298611821416165919472216
1406848581054126215091767207223582837
1507299131121134216031876219725003004
1607749691188142116971985232126423170
17081910241255150117912094244627843337
18086410801322158118842202257129263504
19090911351389166119782311269630683671
20095311911456174120722420282132103837
220104313021591190122592637307134944171
240113314131725206124472855332037794504
260122315241859222026353072357040634838
280131316351994238028223290382043475171
300 17462128254030103507406946315504
320  2262270031979725431949155838
340  2396286033853942456951996171
360   301935724160481954836505
380    37604377506857676838
400    39474595531860517172
single-end-stud-dimensions

Single End Stud

L-Overall Length

T-Thread Length

D-Thread diameter(Metric/Inches)

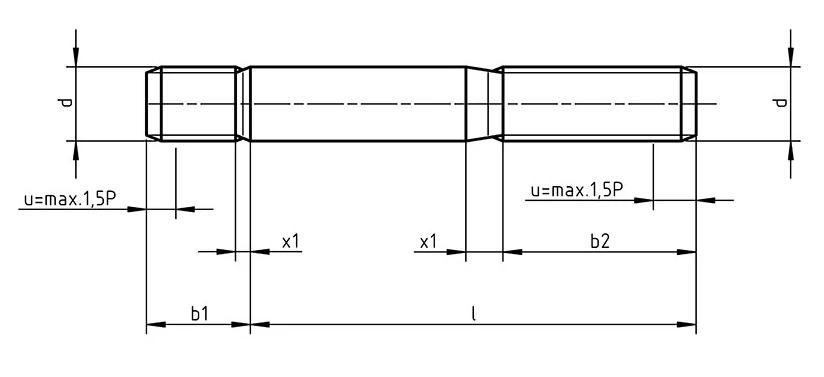

Custom Double End Stud Dimensions

Custom Double end Stud

l - length of bolt

d - the nominal diameter of the thread

u - thread run

b1 - length of thread 1

b2 - length of thread 2
