HEX BOLTS

Description:

Hex bolts from ITA Fasteners are mostly used in repair and construction work. As the name implies, they have a hexagonal head and come with machine threads for a firm and rough handling. They come in a wide range of different hex bolt sizes for custom applications depending on its dimensional requirements. These Hex Bolts come in the anti-corrosion stainless steel, alloy steel and carbon steel materials which ensures that the structure doesn’t weaken because of rust. Depending on the length of the bolt, it can come with standard threading or full threading.

Since it is made out of such strong materials, these high quality grade 8.8 bolts are often used in high-temperature environments like automotive parts assembly. These Hex Bolts can also be used in marine and coastal operations due to its anti-corrosion property. We ensure that all our products are durable and high strength components which can only enhance your work's credibility. If you require stainless steel hex bolts, hex head bolts or hex bolts in large orders, get in touch with us to get a quote.

Dimensional Standards:

IS1364, ISO 4014, ISO 4017, DIN 933, DIN 931, BS 1083, BS 1768, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, DIN-EN14399-4, DIN 601, ISO 4016, CSN 21301, EU 24016, DIN 7968, DIN7990

Size range:

Metric: M2 to M42
Inches: 1/4” to 2”

Hex Bolt Dimensions

HEX Bolts Dimensions - DIN 933

d1d1	k	e	s
M3	2	6.01	5.5
M4	2.8	7.66	7
M5	3.5	8.79	8
M6	4	11.05	10
M8	5.3	14.38	13
M10	6.4	18.9	17
M12	7.5	21.1	19
M14	8.8	24.49	22
M16	10	26.75	24
M18	11.5	30.14	27
M20	12.5	33.53	30
M22	14	35.72	32
M24	15	39.98	36
M27	17	45.2	41
M30	18.7	50.85	46
M33	21	55.37	50
M36	22.5	60.79	55
M42	26	71.3	65
M48	30	82.6	75

HEX Bolt Dimensions - ISO 4017

d1d1	k	e	s
M3	2	6.01	5.5
M4	2.8	7.66	7
M5	3.5	8.79	8
M6	4	11.05	10
M8	5.3	14.38	13
M10	6.4	18.9	16
M12	7.5	21.1	18
M14	8.8	24.49	21
M16	10	26.75	24
M18	11.5	30.14	27
M20	12.5	33.53	30
M22	14	35.72	34
	15	39.98	36
M27	17	45.2	41
M30	18.7	50.85	46
M33	21	55.37	50
M36	22.5	60.79	55
M42	26	71.3	65
M48	30	82.6	75

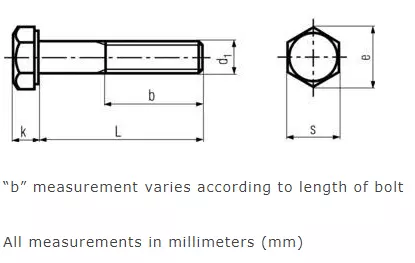

HEX Bolts Dimensions - DIN 931

d1d1	b to 125	b to 200	b over 200	k	e	s
M4	14	-	-	2.8	7.66	7
M5	16	-	-	3.5	8.79	8
M6	18	24	-	4	11.05	10
M8	22	28	-	5.3	14.38	13
M10	26	32	45	6.4	18.9	17
M12	30	36	49	7.5	21.1	19
M14	34	40	53	8.8	24.49	22
M16	38	44	57	10	26.75	24
M18	42	48	61	11.5	30.14	27
M20	46	52	65	12.5	33.53	30
M22	50	56	69	14	35.72	32
M24	54	60	73	15	39.98	36
M27	60	66	79	17	45.2	41
M30	66	72	85	18.7	50.85	46
M33	72	78	91	21	55.37	50
M36	78	84	97	22.5	60.79	55
M42	90	96	109	26	71.3	65
M45	96	102	115	28	76.95	70
M48	102	108	121	30	82.6	75

HEX Bolt Dimensions - ISO 4014

d1d1	b to 125	b to 200	b over 200	k	e	s
M4	14	-	-	2.8	7.66	7
M5	16	-	-	3.5	8.79	8
M6	18	24	-	4	11.05	10
M8	22	28	-	5.3	14.38	13
M10	26	32	45	6.4	18.9	16
M12	30	36	49	7.5	21.1	18
M14	34	40	53	8.8	24.49	21
M16	38	44	57	10	26.75	24
M18	42	48	61	11.5	30.14	27
M20	46	52	65	12.5	33.53	30
M22	50	56	69	14	35.72	34
M24	54	60	73	15	39.98	36
M27	60	66	79	17	45.2	41
M30	66	72	85	18.7	50.85	46
M33	72	78	91	21	55.37	50
M36	78	84	97	22.5	60.79	55
M42	90	96	109	26	71.3	65
M45	96	102	115	28	76.95	70
M48	102	108	121	30	82.6	75

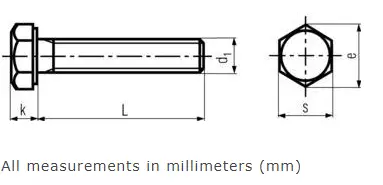

HEX Bolts Dimensions - DIN 558

d1	s	e	k
M6	10	10.89	4
M8	13	14.2	5.3
M10	17	18.72	6.4
M12	19	20.88	7.5
M16	24	26.17	10
M20	30	32.95	12.5

HEX Bolt Dimensions - ISO 4018

d1	s	e	k
M6	10	10.89	4
M8	13	14.2	5.3
M10	16	18.72	6.4
M12	18	20.88	7.5
M16	24	26.17	10
M20	30	32.95	12.5

Nominal size and thread diameter d	Number of threads per Inch		Thread Length B	Diameter of unthreaded shank Ds		Width across flats S		Width across corners E	Dia. of washer face Dw		Thickness of head K		Radius under head R
Nominal size and thread diameter d		BSW	BSF.	min.	min.	max.	min.	max.	max.	min.	max.	nom.	min.	min.	max
¼	20	26	0.5	0.2465	0.25	0.438	0.445	0.51	0.418	0.428	0.166	0.176	0.015	0.025
5/16	18	22	0.625	0.309	0.3125	0.518	0.525	0.61	0.498	0.508	0.208	0.218	0.015	0.025
3/8	16	20	0.75	0.3715	0.375	0.592	0.6	0.69	0.572	0.582	0.25	0.26	0.015	0.025
7/16	14	18	0.875	0.4335	0.4375	0.702	0.71	0.82	0.68	0.69	0.292	0.302	0.015	0.025
½	12	16	1	0.496	0.5	0.812	0.82	0.95	0.79	0.8	0.333	0.343	0.015	0.025
9/16	12	16	1.0625	0.5585	0.5625	0.912	0.92	1.06	0.89	0.9	0.365	0.975	0.02	0.045
5/8	11	14	1.25	0.619	0.625	1	1.01	1.17	0.975	0.985	0.407	0.417	0.02	0.045
¾	10	12	1.5	0.744	0.75	1.19	1.2	1.39	1.165	1.175	0.48	0.5	0.02	0.045
7/8	9	11	1.75	0.867	0.875	1.288	1.3	1.5	1.263	1.273	0.563	0.583	0.04	0.065
1	8	10	2	0.992	1	1.468	1.48	1.71	1.443	1.453	0.636	0.666	0.06	0.095
1.1/8	7	9	2.25	1.117	1.125	1.64	1.67	1.93	1.61	1.62	0.71	0.75	0.06	0.095
1.1/4	7	9	2.5	1.242	1.25	1.815	1.86	2.15	1.785	1.795	0.79	0.83	0.06	0.095
1.3/8	-	8	2.75	1.365	1.375	2.005	2.05	2.37	1.975	1.985	0.88	0.92	0.06	0.095
1.1/2	6	8	3	1.49	1.5	2.175	2.22	2.56	2.145	2.155	0.96	1	0.06	0.095
1.3/4	5	7	3.5	1.74	1.75	2.52	2.58	2.98	2.485	2.495	1.11	1.17	0.06	0.095
2	4.5	7	4	1.99	2	2.7	2.76	3.19	2.665	2.675	1.27	1.33	0.06	0.095

Nominal size and thread diameter d	Number of threads per Inch		Thread Length B		Diameter of unthreaded shank Ds		Width across flats S		Width across corners E	Dia. of washer face Dw		Thickness of head K		Radius under head R
Nominal size and thread diameter d		UNC	UNF	Bolt≤ 6min.	Bolt> 6min.	min.	max.	min.	max.	max.	min.	max.	nom.	min.	min.	max.
1/4	20	28	0.750	1.000	0.2465	0.25	0.4305	0.4375	0.505	0.411	0.421	0.153	0.163	0.015	0.025
5/16	18	24	0.875	1.125	0.309	0.3125	0.493	0.5	0.577	0.473	0.483	0.201	0.211	0.015	0.025
3/8	16	24	1.000	1.250	0.3715	0.375	0.5545	0.5625	0.650	0.535	0.545	0.233	0.243	0.015	0.025
7/16	14	20	1.125	1.375	0.4335	0.4375	0.617	0.625	0.722	0.595	0.605	0.281	0.291	0.015	0.025
1/2	13	20	1.250	1.500	0.496	0.5	0.742	0.75	0.866	0.720	0.730	0.313	0.323	0.015	0.025
9/16	12	18	1.375	1.625	0.5585	0.5625	0.8045	0.8125	0.938	0.782	0.792	0.361	0.371	0.020	0.045
5/8	11	18	1.500	1.750	0.619	0.625	0.9295	0.9375	1.083	0.908	0.918	0.393	0.403	0.020	0.045
3/4	10	16	1.750	2.000	0.744	0.75	1.115	1.125	1.300	1.090	1.100	0.463	0.483	0.020	0.045
7/8	9	14	2.000	2.250	0.867	0.875	1.3005	1.3125	1.515	1.275	1.285	0.543	0.563	0.040	0.065
1	8	12	2.250	2.500	0.992	1	1.488	1.5	1.732	1.473	1.463	0.597	0627	0.060	0.095
1.1/8	7	8	2.500	2.750	1.117	1.125	1.6575	1.6875	1.948	1.625	1.641	0.678	0.718	0.060	0.095
1.1/4	7	8	2.750	3.000	1.242	1.25	1.83	1.875	2.165	1.797	1.813	0.773	0.813	0.060	0.095
1.3/8	6	8	3.000	3.250	1.365	1.375	2.0175	2.0625	2.382	1.985	2.001	0.838	0.878	0.060	0.095
1.1/2	6	8	3.250	3.500	1.49	1.5	2.205	2.25	2.598	2.172	2.188	0..934	0.975	0.060	0.095
1.3/4	5	8	3.750	4.000	1.74	1.75	2.565	2.625	3.031	2.527	2.543	1.074	1.134	0.060	0.095
2	4.5	8	4.250	4.500	1.99	2	2.94	3	3.464	2.902	2.918	1.203	1.263	0.060	0.095

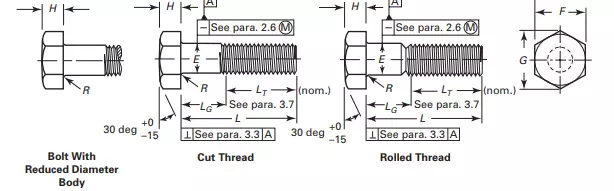

Nominal or Basic Product Diameter		E		F			G		H			J	LT		Y
				Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	Thread Length		Transition Thread Length
															For Screw Lengths	For Screw Lengths
															≤ 6 in.	> 6 in.
				Max	Min	Basic	Max	Min	Max	Min	Basic	Max	Min	Min	Ref	Ref	Max
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

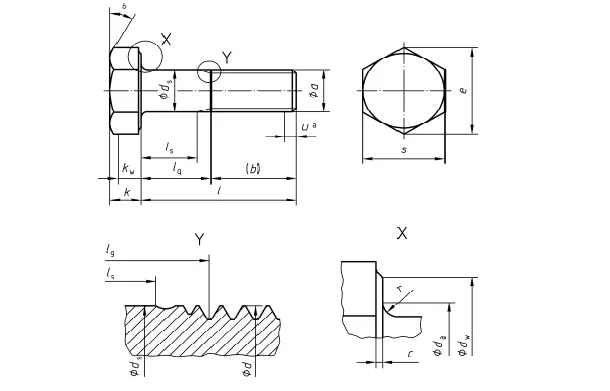

HEX Bolts Dimensions - EN 14399-4:2005 (E)

Thread d	M12	M16	M20	M22	M24	M27	M30	M36
Pb	1,75	2	2,5	2,5	3	3	3,5	4
b (ref).	23	28	33	34	39	41	44	52
C min.	0,4	0,4	0,4	0,4	0,4	0,4	0,4	0,4
C max.	0,6	0,6	0,8	0,8	0,8	0,8	0,8	0,8
da max.	15,2	19,2	24	26	28	32	35	41
ds nom	12	16	20	22	24	27	30	36
ds min	11,3	15,3	19,16	21,16	23,16	26,16	29,16	35
ds max	12,7	16,7	20,84	22,84	24,84	27,84	30,84	37
dw min	20,1	24,9	29,5	33,3	38,0	42,8	46,6	55,9
dw max	c	c	c	c	c	c	c	c
e min	23,91	29,56	35,03	39,55	45,20	50,85	55,37	66,44
k nom	8	10	13	14	15	17	19	23
k min	7,55	9,25	12,1	13,1	14,1	16,1	17,95	21,95
k max	8,45	10,75	13,9	14,9	15,9	17,9	20,05	24,05
kw min	5,28	6,47	8,47	9,17	9,87	11,27	12,56	15,36
r min	1,2	1,2	1,5	1,5	1,5	2	2	2
s max	22	27	32	36	41	46	50	60
smin	21,16	26,16	31	35	40	45	49	58,8

Thread d			M12		M16		M20		M22		M24		M27		M30		M36
l			l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g
nom.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
35	33,75	36,25	6,75	12
40	38,75	41,25	11,75	17	6	12
45	43,75	46,25	16,75	22	11	17	4,5	12
50	48,75	51,25	21,75	27	16	22	9,5	17	8,5	16
55	53,5	56,5	26,75	32	21	27	14,5	22	13,5	21
60	58,5	61,5	31,75	37	26	32	19,5	27	18,5	26	12	21
65	63,5	66,5	36,75	42	31	37	24,5	32	23,5	31	17	26
70	68,5	71,5	41,75	47	36	42	29,5	37	28,5	36	22	31	20	29
75	73,5	76,5	46,75	52	41	47	34,5	42	33,5	41	27	36	25	34	20,5	31
80	78,5	81,5	51,75	57	46	52	39,5	47	38,5	46	32	41	30	39	25,5	36
85	83,25	86,75	56,75	62	51	57	44,5	52	43,5	51	37	46	35	44	30,5	41	21	33
90	88,25	91,75	61,75	67	56	62	49,5	57	48,5	56	42	51	40	49	35,5	47	26	38
95	93,25	96,75	66,75	72	61	67	54,5	62	53,5	61	47	56	45	54	40,5	51	31	43
100	98,25	101,75			66	72	59,5	67	58,5	66	52	61	50	59	45,5	56	36	48
105	103,25	106,75			71	77	64,5	72	63,5	71	57	66	55	64	50,5	61	41	53
110	108,25	111,75			76	82	69,5	77	68,5	76	62	71	60	69	55,5	66	46	58
115	113,25	116,75			81	87	74,5	82	73,5	81	67	76	65	74	60,5	71	51	63
120	118,25	121,75			86	92	79,5	87	78,5	86	72	81	70	79	65,5	76	56	68
125	123	127			91	97	84,5	92	83,5	91	77	86	75	84	70,5	81	61	73
130	128	132			96	102	89,5	97	88,5	96	82	91	80	89	75,5	86	66	78
135	133	137					94,5	102	93,5	101	87	96	85	94	80,5	91	71	83
140	138	142					99,5	107	98,5	106	92	101	90	99	85,5	96	76	88
145	143	147					104,5	112	103,5	111	97	106	95	104	90,5	101	81	93
150	148	152					109,5	117	108,5	116	102	111	100	109	95,5	106	86	98
155	153	159					114,5	122	113,5	121	107	116	105	114	100,5	111	91	103
160	158	164							118,5	126	112	121	110	119	105,5	116	96	108
165	163	169							123,5	131	117	126	115	124	110,5	121	101	113
170	168	174									122	131	120	129	115,5	126	106	118
175	173	179									127	136	125	134	120,5	131	111	123
180	178	184									132	141	130	139	125,5	136	116	128
185	182,7	189,6									137	146	135	144	130,5	141	121	133
190	187,7	194,6									142	151	140	149	135,5	146	126	138
195	192,7	199,6									147	156	145	154	140,5	151	131	143
200	197,7	204,6											150	159	147,5	156	136	148

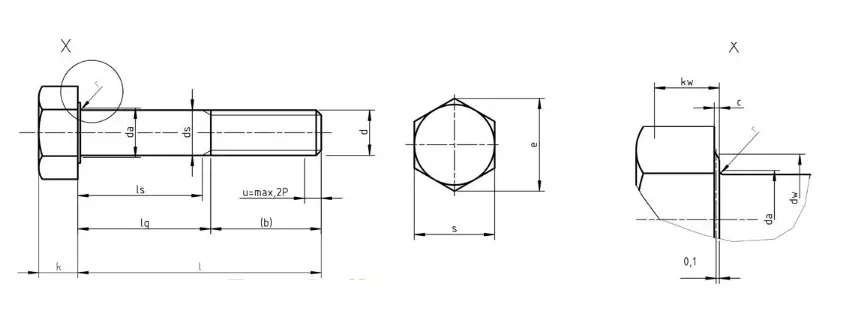

DIN 601

Equivalent Norms:ISO4016, CSN21301, EU24016, UNI5725

Thread d		M5	M6	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64
P		0.8	1	1.25	1.5	1.75	2	2.5	3	3.5	4	4.5	5	5.5	6
b	l<125mm	16	18	22	26	30	38	46	54	66	-	-	-	-	-
	125mm< l < 200mm	22	24	28	32	36	44	52	60	72	84	96	108	-	-
	l > 200mm	35	37	41	45	49	57	65	73	85	97	109	121	137	153
c	max.	0.5	0.5	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	1	1	1	1
da	max.	6	7.2	10.2	12.2	14.7	18.7	24.4	28.4	35.4	42.4	48.6	56.6	67	75
ds	max.	5.48	6.48	8.58	10.58	12.7	16.7	20.84	24.84	30.84	37	43	49	57.2	65.2
ds	min.	4.52	5.52	7.42	9.42	11.3	15.3	19.16	23.16	29.16	35	41	47	54.8	62.8
dw	min.	6.74	8.74	11.47	14.47	16.47	22	27.7	33.25	42.75	51.11	59.95	69.45	78.66	88.16
e	min.	8.63	10.89	14.2	17.59	19.85	26.17	32.95	39.55	50.85	60.79	71.3	82.6	93.56	104.86
k	nominal	3.5	4	5.3	6.4	7.5	10	12.5	15	18.7	22.5	26	30	35	40
	max.	3.875	4.375	5.675	6.85	7.95	10.75	13.4	15.9	19.75	23.55	27.05	31.05	36.25	41.25
	min.	3.125	3.625	4.925	5.95	7.05	9.25	11.6	14.1	17.65	21.45	24.95	28.95	33.75	38.75
kw	min.	2.19	2.54	3.45	4.17	4.94	6.48	8.12	9.87	12.36	15.02	17.47	20.27	23.63	27.13
r	min.	0.2	0.25	0.4	0.4	0.6	0.6	0.8	0.8	1	1	1.2	1.6	2	2
s	nominal=max.	8	10	13	16	18	24	30	36	46	55	65	75	85	95
s	min.	7.64	9.64	12.57	15.57	17.57	23.16	29.16	35	45	53.8	63.1	73.1	82.8	92.8

Thread d			M5		M6		M8		M10		M12		M16		M20		M24		M30		M36		M42		M48		M56		M64
l			l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g	l_s	l_g
Nominal	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
25	23.95	26.05	5	9
30	28.95	31.05	10	14	7	12
35	33.75	36.25	15	19	12	17
40	38.75	41.25	20	24	17	22	11.75	18
45	43.75	46.25	25	29	22	27	16.75	23	11.5	19
50	48.75	51.25	30	34	27	32	21.75	28	16.5	24
55	53.5	56.5			32	37	26.75	33	21.5	29	16.25	25
60	58.5	61.5			37	42	31.75	38	26.5	34	21.25	30
65	63.5	66.5					36.75	43	31.5	39	26.25	35	17	27
70	68.5	71.5					41.75	48	36.5	44	31.25	40	22	32
80	78.5	81.5					51.75	58	46.5	54	41.25	50	32	42	21.5	34
90	88.25	91.75							56.5	64	51.25	60	42	52	31.5	44
100	98.25	101.75							66.5	74	61.25	70	52	62	41.5	54	31	46
110	108.25	111.75									71.25	80	62	72	51.5	64	41	56
120	118.25	121.75									81.25	90	72	82	61.5	74	51	66	36.5	54
130	128	132											76	86	65.5	78	55	70	40.5	58
140	138	142											86	96	75.5	88	65	80	50.5	68	36	56
150	148	152											96	106	85.5	98	75	90	60.5	78	46	66
160	156	164											106	116	95.5	108	85	100	70.5	88	56	76
180	176	184													115.5	128	105	120	90.5	108	76	96	61.5	84
200	195.4	204.6													135.5	148	125	140	110.5	128	96	116	81.5	104	67	92
220	215.4	224.6															132	147	117.5	135	103	123	88.5	111	74	99
240	235.4	244.6															152	167	137.5	155	123	143	108.5	131	94	119	75.5	103
260	254.8	265.2																	157.5	175	143	163	128.5	151	114	139	95.5	123	77	107
280	274.8	285.2																	177.5	195	163	183	148.5	171	134	159	115.5	143	97	127
300	294.8	305.2																	197.5	215	183	203	168.5	191	154	179	135.5	163	117	147
320	314.3	325.7																			203	223	188.5	211	174	199	155.5	183	137	167
340	334.3	345.7																			223	243	208.5	231	194	219	175.5	203	157	187
360	354.3	365.7																			243	263	228.5	251	214	239	195.5	223	177	207
380	374.3	385.7																					248.5	271	234	259	215.5	243	197	227
400	394.3	405.7																					268.5	291	254	279	235.5	263	217	247
420	413.7	426.3																					288.5	311	274	299	255.5	283	237	267
440	433.7	446.3																							294	319	275.5	303	257	287
460	453.7	466.3																							314	339	295.5	323	277	307
480	473.7	486.3																							334	359	315.5	343	297	327
500	493.7	506.3																									335.5	363	317	347

Thread
d (non-preferred dimensions)		M14	M18	M22	M27	M33	M39	M45	M52	M60
P		2	2.5	2.5	3	3.5	4	4.5	5	5.5
b	l?125mm	34	42	50	60		-	-	-	-
	125mm< l ? 200mm	40	48	56	66	78	90	102	116	-
	l > 200mm	53	61	69	79	91	103	115	129	145
c	max.	0.6	0.8	0.8	0.8	0.8	1	1	1	1
d_a	max.	16.7	21.2	26.4	32.4	38.4	45.4	52.6	62.6	71
d_s	max.	14.7	18.7	22.84	27.84	34	40	46	53.2	61.2
d_s	min.	13.3	17.3	21.16	26.16	32	38	44	50.8	58.8
d_w	min.	19.15	24.85	31.35	38	46.55	55.86	64.7	74.2	83.41
e	min.	22.78	29.56	37.29	45.2	55.37	66.44	76.95	88.25	99.21
k	nominal	8.8	11.5	14	17	21	25	28	33	38
	max.	9.25	12.4	14.9	17.9	22.05	26.05	29.05	34.25	39.25
	min.	8.35	10.6	13.1	16.1	19.95	23.95	26.95	31.75	36.75
kw	min.	5.85	7.42	9.17	11.27	13.97	16.77	18.87	22.23	25.73
r	min.	0.6	0.6	0.8	1	1	1	1.2	1.6	2
s	nominal=max.	21	27	34	41	50	60	70	80	90
s	min.	20.16	26.16	33	40	49	58.8	68.1	78.1	87.8

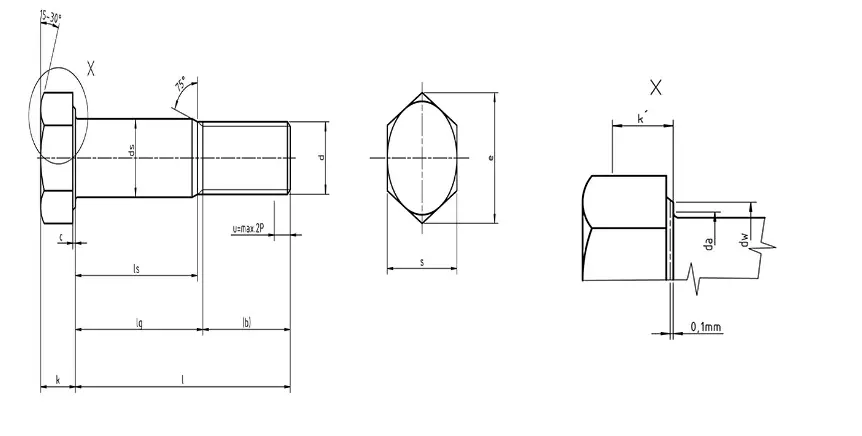

DIN 7968 - Hexagon Fit bolts for steel structures

Thread size (d)		M12		M16		M20		M22		M24		M27		M30
P		1.75		2		2.5		2.5		3		3		3.5
b (auxility dimension)		17.12		20.5		23.75		25.75		26.5		29.5		31.25
c	max.	0.6		0.8		0.8		0.8		0.8		0.8		0.8
d_a	max.	14.7		18.7		24.4		26.4		28.4		32.4		35.4
d_s	h11	13		17		21		23		25		28		31
d_w	min.	16.4	17.2	22		27.7		31.4	29.5	33.2		38		42.7
e	min.	19.85	20.88	26.17		32.95		37.29	35.03	39.55		45.2		50.85
k	Nominal size	8		10		13		14		15		17		19
	min.	7.55		9.25		12.1		13.1		14.1		16.1		17.95
	max.	8.45		10.75		13.9		14.9		15.9		17.9		20.05
k´	min.	5.28		6.47		8.47		9.17		9.87		11.27		12.56
r	min.	0.6		0.6		0.8		0.8		0.8		1		1
s	max.=nominal size	18	19	24		30		34	32	36		41		46
s	min.	17.57	18.48	23.16		29.16		33	31	35		40		45
l			Lengths ls and lg
l			ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg
nominal size	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
30	28.95	31.05	8.5	12.88
35	33.75	36.25	13.5	17.88	9.5	14.5
40	38.75	41.25	18.5	22.88	14.5	19.5	10	16.25
45	43.75	46.25	23.5	27.88	19.5	24.5	15	21.25	13	19.25
50	48.75	51.25	28.5	32.88	24.5	29.5	20	26.25	18	24.25	16	23.5
55	53.5	56.5	33.5	37.88	29.5	34.5	25	31.25	23	29.25	21	28.5
60	58.5	61.5	38.5	42.88	34.5	39.5	30	36.25	28	34.25	26	33.5	23	30.5
65	63.5	66.5	43.5	47.88	39.5	44.5	35	41.25	33	39.25	31	38.5	28	35.5
70	68.5	71.5	48.5	52.88	44.5	49.5	40	46.25	38	44.25	36	43.5	33	40.5	30	38.75
75	73.5	76.5	53.5	57.88	49.5	54.5	45	51.25	43	49.25	41	48.5	38	45.5	35	43.75
80	78.5	81.5	58.5	62.88	54.5	59.5	50	56.25	48	54.25	46	53.5	43	50.5	40	48.75
85	83.25	86.75	63.5	67.88	59.5	64.5	55	61.25	53	59.25	51	58.5	48	55.5	45	53.75
90	88.25	91.75	68.5	72.88	64.5	69.5	60	66.25	58	64.25	56	63.5	53	60.5	50	58.75
95	93.25	96.75	73.5	77.88	69.5	74.5	65	71.25	63	69.25	61	68.5	58	65.5	55	63.75
100	98.25	101.75	78.5	82.88	74.5	79.5	70	76.25	68	74.25	66	73.5	63	70.5	60	68.75
105	103.25	106.75	83.5	87.88	79.5	84.5	75	81.25	73	79.25	71	78.5	68	75.5	65	73.75
110	108.25	11.75	88.5	92.88	84.5	89.5	80	86.25	78	84.25	76	83.5	73	80.5	70	78.75
115	113.25	116.75	93.5	97.88	89.5	94.5	85	91.25	83	89.25	81	88.5	78	85.5	75	83.75
120	118.25	121.75	98.5	102.88	94.5	99.5	90	96.25	88	94.25	86	93.5	83	90.5	80	88.75
125	123	127			99.5	104.5	95	101.25	93	99.25	91	98.5	88	95.5	85	93.75
130	128	132			104.5	109.5	100	106.25	98	104.25	96	103.5	93	100.5	90	98.75
135	133	137			109.5	114.5	105	11.25	103	109.25	101	108.5	98	105.5	95	103.75
140	138	142			114.5	119.5	110	116.25	108	114.25	106	113.5	103	110.5	100	108.75
145	143	147			119.5	124.5	115	121.25	113	119.25	111	118.5	108	115.5	105	113.75
150	152	152			124.5	129.5	120	126.25	118	124.25	116	123.5	113	120.5	110	118.75
155	148	159			129.5	134.5	125	131.25	123	129.25	121	128.5	118	125.5	115	123.75
160	156	164			134.5	139.5	130	136.25	128	134.25	126	133.5	123	130.5	120	128.75
165	161	169					135	141.25	133	139.25	131	138.5	128	135.5	125	133.75
170	166	174					140	146.25	138	144.25	136	143.5	133	140.5	130	138.75
175	171	179					145	151.25	143	149.25	141	148.5	138	145.5	135	143.75
180	176	184					150	156.25	148	154.25	146	153.5	143	150.5	140	148.75
185	180.4	189.6							153	159.25	151	158.5	148	155.5	145	153.75
190	185.4	194.6							158	164.25	156	163.5	153	160.5	150	158.75
195	190.4	199.6							163	169.25	161	168.5	158	165.5	155	163.75
200	195.4	204.6							168	174.25	166	173.5	163	170.5	160	168.75

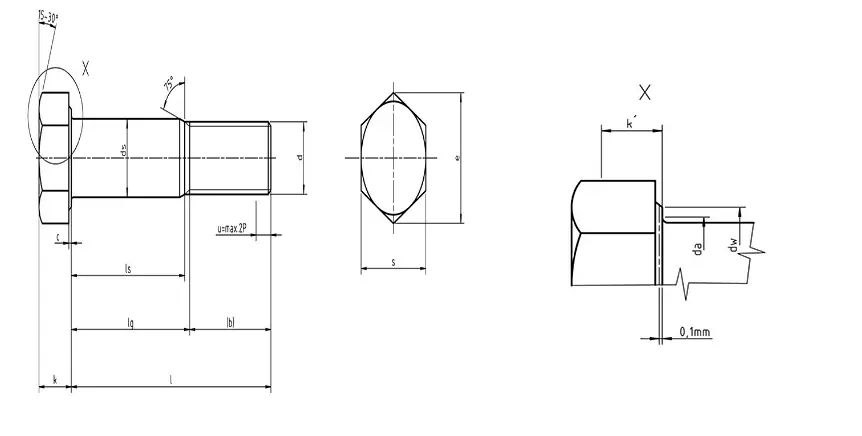

Thread d		M12	M16	M20	M22	M24	M27	M30
P		1.75	2	2.5	2.5	3	3	3.5
b		17.75	21	23.5	25.5	26	29	30.5
c	max.	0.6	0.8	0.8	0.8	0.8	0.8	0.8
da	max.	14.7	18.7	24.4	26.4	28.4	32.4	35.4
ds	nominal	12	16	20	22	24	27	30
	min.	11.3	15.3	19.16	21.16	23.16	26.16	29.16
	max.	12.7	16.7	20.84	22.84	24.84	27.84	27.84
dw	min.	17.2	22	27.7	29.5	33.2	0.8	42.7
e	min.	20.88	26.17	32.95	35.03	39.55	45.2	50.85
k	nominal	8	10	13	14	15	17	19
	min.	7.55	9.25	12.1	13.1	14.1	16.1	17.95
	max.	8.45	10.75	13.9	14.9	18.9	17.9	20.05
k´	min.	5.28	6.47	8.47	9.17	9.87	11.27	12.56
r	min.	0.6	0.6	0.8	0.8	0.8	1	1
s	nominal=max.	19	24	30	32	36	41	46
s	min.	18.48	23.16	29.16	31	35	40	45

Thread d			M12		M16		M20		M22		M24		M27		M30
l			lengths ls and lg
Nominal	min.	max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.	ls min.	lg max.
30	28.95	31.05	7	12.25
35	33.75	36.25	12	17.25	8	14
40	38.75	41.25	17	22.25	13	19	9	16.5	7	14.5
45	43.75	46.25	22	27.25	18	24	14	21.5	12	19.5	10	19
50	48.75	51.25	27	32.25	23	29	19	26.5	17	24.5	15	24
55	53.5	56.5	32	37.25	28	34	24	31.5	22	29.5	20	29
60	58.5	61.5	37	42.25	33	39	29	36.5	27	34.5	25	34	22	31
65	63.5	66.5	42	47.25	38	44	34	41.5	32	39.5	30	39	27	36
70	68.5	71.5	47	52.25	43	49	39	46.5	37	44.5	35	44	32	41
75	73.5	76.5	52	57.25	48	54	44	51.5	42	49.5	40	49	37	46
80	78.5	81.5	57	62.25	53	59	49	56.5	47	54.5	45	54	42	51	39	49.5
85	83.25	86.75	62	67.25	58	64	54	61.5	52	59.5	50	59	47	56	44	54.5
90	88.25	91.75	67	72.25	63	69	59	66.5	57	64.5	55	64	52	61	49	59.5
95	93.25	96.75	72	77.25	68	74	64	71.5	62	69.5	60	69	57	66	54	64.5
100	98.25	101.75	77	82.25	73	79	69	76.5	67	74.5	65	74	62	71	59	69.5
105	103.25	106.75	82	87.25	78	84	74	81.5	72	79.5	70	79	67	76	64	74.5
110	108.25	111.75	87	92.25	83	89	79	86.5	77	84.5	75	84	72	81	69	79.5
115	113.25	116.75	92	97.25	88	94	84	91.5	82	89.5	80	89	77	86	74	84.5
120	118.25	121.75	97	102.25	93	99	89	96.5	87	94.5	85	94	82	91	79	89.5
125	123	127			98	104	94	101.5	92	99.5	90	99	87	96	84	94.5
130	128	132			103	109	99	106.5	97	104.5	95	104	92	101	89	99.5
135	133	137			108	114	104	111.5	102	109.5	100	109	97	106	94	104.5
140	138	142			113	119	109	116.5	107	114.5	105	114	102	111	99	109.5
145	143	147			118	124	114	121.5	112	119.5	110	119	107	116	104	114.5
150	148	152			123	129	119	126.5	117	124.5	115	124	112	121	109	119.5
155	151	159					124	131.5	122	129.5	120	129	117	126	114	124.5
160	156	164					129	136.5	127	134.5	125	134	122	131	119	129.5
165	161	169					134	141.5	132	139.5	130	139	127	136	124	134.5
170	166	174					139	146.5	137	144.5	135	144	132	141	129	139.5
175	171	179					144	151.5	142	149.5	140	149	137	146	134	144.5
180	176	184							147	154.5	145	154	142	151	139	149.5
185	180.4	189.6							152	159.5	150	159	147	156	144	154.5
190	185.4	194.6							157	164.5	155	164	152	161	149	159.5
195	190.4	199.6							162	169.5	160	169	157	166	154	164.5
200	195.4	204.6							167	174.5	165	174	163	172	159	169.5
