Socket head cap screws

Description:

Socket head cap screws from ITA Fasteners comply with the strictest industry standards for durability and strength. It is made of stainless steel, carbon steel or alloy steel making it corrosion resistant. An internal hex drive is usually used for its installation on surfaces. The clamped parts get their support from stretching the screws to handle the external forces faced by it. It allows these screws to handle the pre-load placed on it efficiently without any strain. They provide you with the highest fatigue resistance if they are tightened to their respective torque figure.

Socket head cap screws are usually preferred in applications which require an aesthetically pleasing fastener for exposed views but still have enough tensile strength for better load handling. They are mainly used in applications like the construction of plastic injection molds, power plant parts and transmission tools, hydraulic braking system and home furniture.

Dimensional Standards:

IS 2269, ISO 4762, DIN 912, BS 4168, BS 2470, ASME B18.3.1M, JIS B1176

Size range:

Metric: M2 to M42
Inches:1/8” to 1”

Flange Button Socket Screws Dimensions

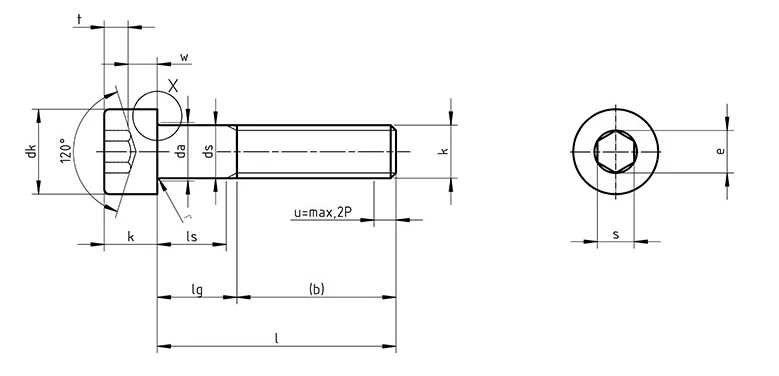

ISO 4762 - Hexagon socket Head Cap Screws

ISO 4762-socketheadcapscrews2 Dimensions

Thread d		M1,6	M2	M2,5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	M20	M24	M30	M36	M42	M48	M56	M64
P		0,35	0,4	0,45	0,5	0,7	0,8	1	1,25	1,5	1,75	2	2	2,5	3	3,5	4	4,5	5	5,5	6
b		15	16	17	18	20	22	24	28	32	36	40	44	52	60	72	84	96	108	124	140
d_k	max.	3,00	3,80	4,50	5.5	7,00	8,50	10	13,00	16,00	18,00	21,00	24,00	30,00	36,00	45,00	54,00	63,00	72,00	84,00	96,00
	max. for grooved head	3,14	3,98	4,68	5.68	7,22	8,72	10,22	13,27	16,27	18,27	21,33	24,33	30,33	36,39	45,39	54,46	63,46	72,46	84,54	96,54
	min.	2,86	3,62	4,32	5,32	6,78	8,28	9,78	12,73	15,73	17,73	20,67	23,67	29,67	35,61	44,61	53,54	62,54	71,54	83,46	95,46
da	max.	2	2,6	3,1	3,6	4,7	5,7	6,8	9,2	11,2	13,7	15,7	17,7	22,4	26,4	33,4	39,4	45,6	52,6	63	71
d_s	max.	1,60	2,00	2,50	3,00	4,00	5,00	6,00	8,00	10,00	12,00	14,00	16	20,00	24,00	30,00	36,00	42,00	48,00	56,00	64,00
d_s	min.	1,46	1,86	2,36	2,86	3,82	4,82	5,82	7,78	9,78	11,73	13,73	15,73	19,67	23,67	29,67	35,61	41,61	47,61	55,54	63,54
e	min.	1,733	1,733	2,303	2,873	3,443	4,583	5,723	6,863	9,149	11,429	13,716	15,996	19,437	21,734	25,154	30,854	36,571	41,131	46,831	52,531
h	max.	0,34	0,51	0,51	0,51	0,6	0,6	0,68	1,02	1,02	1,45	1,45	1,45	2,04	2,04	2,89	2,89	3,06	3,91	5,95	5,95
k	max.	1,60	2,00	2,50	3,00	4,00	5,00	6,0	8,00	10,00	12,00	14,00	16,00	20,00	24,00	30,00	36,00	42,00	48,00	56,00	64,00
k	min.	1,46	1,86	2,36	2,86	3,82	4,82	5,7	7,64	9,64	11,57	13,57	15,57	19,48	23,48	29,48	35,38	41,38	47,38	55,26	63,26
r	min.	0,1	0,1	0,1	0,1	0,2	0,2	0,25	0,4	0,4	0,6	0,6	0,6	0,8	0,8	1	1	1,2	1,6	2	2
s	nominal	1,5	1,5	2	2,5	3	4	5	6	8	10	12	14	17	19	22	27	32	36	41	46
	max.	1,58	1,58	2,08	2,58	3,08	4,095	5,14	6,14	8,175	10,175	12,212	14,212	17,23	19,275	22,275	27,275	32,33	36,33	41,33	46,33
	min.	1,52	1,52	2,02	2,52	3,02	4,020	5.02	6,02	8,025	10,025	12,032	14,032	17,05	19,065	22,065	27,065	32,08	36,08	41,08	46,08
t	min.	0,7	1	1,1	1,3	2	2,5	3	4	5	6	7	8	10	12	15,5	19	24	28	34	38
v	max.	0,16	0,2	0,25	0,3	0,4	0,5	0,6	0.8	1	1,2	1,4	1,6	2	2,4	3	3,6	4,2	4,8	5,6	6,4
d_w	min.	2,72	3,48	4,18	5,07	6,53	8,03	9,38	12,33	15,33	17,23	20,17	23,17	28,87	34,81	43,61	52,54	61,34	70,34	82,26	94,26
w	min.	0,55	0,55	0,85	1,15	1,4	1,9	2,3	3,3	4	4,8	5,8	6,8	8,6	10,4	13,1	15,3	16,3	17,5	19	22

Thread d			M1,6		M2		M2,5		M3		M4		M5		M6		M8		M10		M12
l			ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg
nominal	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
2,5	2,3	2,7	full thread
3	2,8	3,2	full thread
4	3,76	4,24	full thread
5	4,76	5,24	full thread
6	5,76	6,24	full thread
8	7,71	8,29	full thread
10	9,71	10,29	full thread
12	11,65	12,35	full thread
16	15,65	16,35	full thread
20	19,58	20,42			2	4	full thread
25	24,58	25,42					5,75	8	4,5	7	full thread
30	29,58	30,42							9,5	12	6,5	10	4	8	full thread
35	34,5	35,5									11,5	15	9	13	6	11	full thread
40	39,5	40,5									16,5	20	14	18	11	16	5,75	12	full thread
45	44,5	45,5											19	23	16	21	10,75	17	5,5	13	full thread
50	49,5	50,5											24	28	21	26	15,75	22	10,5	18
55	54,4	55,6													26	31	20,75	27	15,5	23	10,25	19
60	59,4	60,6													31	36	25,75	32	20,5	28	15,25	24
65	64,4	65,6															30,75	37	25,5	33	20,25	29
70	69,4	70,6															35,75	42	30,5	38	25,25	34
80	79,4	80,6															45,75	52	40,5	48	35,25	44
90	89,3	90,7																	50,5	58	45,25	54
100	99,3	100,7																	60,5	68	55,25	64
110	109,3	110,7																			65,25	74
120	119,3	120,7																			75,25	84
130	129,2	130,8
140	139,2	140,8
150	149,2	150,8
160	159,2	160,8
180	179,2	180,8
200	199,07	200,92
220	219,07	220,92
240	239,07	240,92
260	258,95	261,05
280	278,95	281,05
300	298,95	301,05

thread d			(M14)		M16		M20		M24		M30		M36		M42		M48		M56		M64
l			ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg	ls	lg
nominal	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.	min.	max.
16	15,65	16,35
20	19,58	20,42	full thread
25	24,58	25,42	full thread		full thread
30	29,58	30,42	full thread		full thread		full thread
35	34,5	35,5	full thread		full thread		full thread		full thread
40	39,5	40,5	full thread		full thread		full thread		full thread
45	44,5	45,5	full thread		full thread		full thread		full thread		full thread
50	49,5	50,5	full thread		full thread		full thread		full thread		full thread
55	54,4	55,6	full thread		full thread		full thread		full thread		full thread		full thread
60	59,4	60,6	10	20	full thread		full thread		full thread		full thread		full thread		full thread
65	64,4	65,6	15	25	11	21	full thread		full thread		full thread		full thread		full thread
70	69,4	70,6	20	30	16	26	full thread		full thread		full thread		full thread		full thread		full thread
80	79,4	80,6	30	40	26	36	15,5	28	full thread		full thread		full thread		full thread		full thread		full thread
90	89,3	90,7	40	50	36	46	25,5	38	15	30	full thread		full thread		full thread		full thread		full thread		full thread
100	99,3	100,7	50	60	46	56	35,5	48	25	40	full thread		full thread		full thread		full thread		full thread		full thread
110	109,3	110,7	60	70	56	66	45,5	58	35	50	20,5	38	full thread		full thread		full thread		full thread		full thread
120	119,3	120,7	70	80	66	76	55,5	68	45	60	30,5	48	16	36	full thread		full thread		full thread		full thread
130	129,2	130,8	80	90	76	86	65,5	78	55	70	40,5	58	26	46	full thread		full thread		full thread		full thread
140	139,2	140,8	90	100	86	96	75,5	88	65	80	50,5	68	36	56	21,5	44	full thread		full thread		full thread
150	149,2	150,8			96	106	85,5	98	75	90	60,5	78	46	66	31,5	54	full thread		full thread		full thread
160	159,2	160,8			106	116	95,5	108	85	100	70,5	88	56	76	41,5	64	27	52	full thread		full thread
180	179,2	180,8					115,5	128	105	120	90,5	108	76	96	61,5	84	47	72	28,5	56	full thread
200	199,075	200,925					135,5	148	125	140	110,5	128	96	116	81,5	104	67	92	48,5	76	30	60
220	219,075	220,925													101,5	124	87	112	68,5	96	50	80
240	239,075	240,925													121,5	155	107	132	88,5	116	70	100
260	258,95	261,05													141,5	164	127	152	108,5	136	90	120
280	278,95	281,05													161,5	184	147	172	128,5	156	110	140
300	298,95	301,05													181,5	204	167	192	148,5	176	130	160

Hexagon Socket Head Screws BS 2470 (1936 Series) G

Nominal size and thread diameter d	Pitch of thread		Thread length b	Head diameter dk		Diameter of unthreaded shank dw		Thickness of head k		Width across flats s	Radius under head r		Hex socket depth t	Wall thickness w
	UNCUNC	UNFUNF	min.min.	max.max.	min.min.	max.max.	min.min.	max.max.	min.min.	nom.nom.	max.max.	min.min.	min.min.	min.min.
0	--	8000%	0.5	0.096	0.093	0.6	0.0568	0.06	0.057	0.05	0.007	0.003	0.025	0.019
1	64	7200%	0.625	0.118	0.114	0.073	0.0695	0.073	0.07	0.05	0.007	0.003	0.031	0.023
2	56	6400%	0.625	0.14	0.136	0.086	0.0822	0.086	0.083	1/161/16	0.008	0.004	0.038	0.028
3	48	5600%	0.625	0.161	0.157	0.099	0.0949	0.099	0.095	5/645/64	0.008	0.004	0.044	0.032
4	40	4800%	0.75	0.183	0.178	0.112	0.1075	0.112	0.108	5/645/64	0.009	0.005	0.051	0.036
5	40	4400%	0.75	0.205	0.2	0.125	0.1202	0.125	0.121	3/323/32	0.01	0.006	0.057	0.04
6	32	4000%	0.75	0.226	0.221	0.138	0.1329	0.138	0.134	3/323/32	0.01	0.006	0.064	0.044
8	32	3600%	0.875	0.27	0.265	0.164	0.1585	0.164	0.159	1/81/8	0.012	0.007	0.077	0.052
10	24	3200%	0.875	5/165/16	0.306	0.19	0.184	0.19	0.185	5/325/32	0.014	0.009	0.09	0.061
12	24	2800%	0.875	0.343	0.332	0.216	0.21	0.216	0.201	5/325/32	0.014	0.009	0.11	0.074
1/41/4	20	2800%	1	3/83/8	0.367	0.25	0.2435	1/41/4	0.233	3/163/16	0.014	0.009	0.12	0.08
5/165/16	18	2400%	1.125	7/167/16	0.429	0.3125	0.3053	5/165/16	0.306	7/327/32	0.017	0.012	0.151	0.1
3/83/8	16	2400%	1.25	9/169/16	0.553	0.375	0.3678	3/83/8	0.368	5/165/16	0.02	0.015	0.182	0.12
7/167/16	14	2000%	1.375	5/85/8	0.615	0.4375	0.4294	7/167/16	0.43	5/165/16	0.023	0.018	0.213	0.14
43467	13	2000%	1.5	43528	0.739	0.5	0.4919	43467	0.492	43532	0.026	0.02	0.245	0.16
43724	12	1800%	1.625	0.812	0.795	0.5625	0.554	0.562	0.553	43532	0.03	0.022	0.276	0.18
43593	11	1800%	1.75	43654	0.863	0.625	0.6163	43593	0.616	43467	0.032	0.024	0.307	0.2
43528	10	1600%	2	1	0.987	0.75	0.7406	43528	0.74	43724	0.039	0.03	0.37	0.24
43654	9	1400%	2.25	1.1/8	1.111	0.875	0.8647	43654	0.864	43724	0.044	0.034	0.432	0.28
1	8	14/12	2.5	1.5/16	1.297	1	0.98861	1	0.988	43593	0.05	0.04	0.495	0.32
1.1/8	7	1200%		1.5		1.125	1.1086	1.125	1.111	43528			0.557	0.428
1.1/4	7	1200%		1.75		1.25	1.2336	1.25	1.236	43528			0.62	0.475
1.3/8	6	1200%		1.875		1.375	1.3568	1.375	1.36	43528			0.682	0.523
1.1/2	6	1200.00%		2		1.5	1.4818	1.5	1.485	1			0.745	0.57
1.3/4	5	-		2.5		1.75	1.7295	1.75	1.734	1.1/4			0.87	0.665
2	4.1/2	-		2.75		2	1.978	2	1.983	1.3/8			0.995	0.76

Socket Cap screw To ASME B18.3

ASME B18.3-socketheadcapscrews Dimensions

Thread Size	T.P.I UNC	T.P.I UNF	Head Diameter (Max) A	Head Height (Max) H	Key Engagement (Min) T	Key Size J	Thread Length (Min)	Thread Length (Max)
0		80	0.096	0.060	0.025	0.050	0.50	0.62
1	64	72	0.118	0.073	0.031	1/16	0.62	0.77
2	56	64	0.140	0.086	0.038	5/64	0.62	0.80
3	48	56	0.161	0.099	0.044	5/64	0.62	0.83
4	40	48	0.183	0.112	0.051	3/32	0.75	0.99
5	40	44	0.205	0.125	0.057	3/32	0.75	1.00
6	32	40	0.226	0.138	0.064	7/64	0.75	1.05
8	32	36	0.270	0.164	0.077	9/64	0.88	1.19
10	24	32	0.312	0.190	0.090	5/32	0.88	1.27
1/4	20	28	0.375	0.250	0.120	3/16	1.00	1.50
5/16	18	24	0.469	0.312	0.151	1/4	1.12	1.71
3/8	16	24	0.562	0.375	0.182	5/16	1.25	1.94
7/16	14	20	0.656	0.438	0.213	3/8	1.38	2.17
1/2	13	20	0.750	0.500	0.245	3/8	1.50	2.38
5/8	11	18	0.938	0.625	0.307	1/2	1.75	2.82
3/4	10	16	1.125	0.750	0.370	5/8	2	3.25
7/8	9	14	1.312	0.875	0.432	3/4	2.25	3.69
1	8	12	1.500	1.000	0.495	3/4	2.50	4.12
