Nuts
stainless steel | carbon steel | alloy steel | specials
Cage nuts from ITA Fasteners are easy-to-install fasteners used for the installation of racks and other holding instruments. While it can be challenging to get these nuts in place and secure them, they are incredibly supportive structurally, making the racks suitable for heavy loads. They find most of their usage within the computer rooms to hold servers and CPUs in place. They come in various sizes and dimensions depending on what you want to place inside the frame.
It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant. While some might be tempted to use clip nuts and other fasteners to hold servers and players in place, cage nuts have been custom made for that application and can provide great value for money.
M4 to M10
Metric: Nil
Inches: Nil

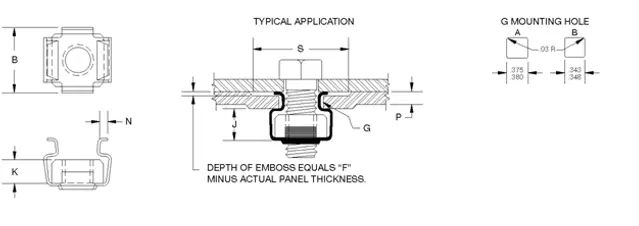

Screw Size | P | F | S | G | B | J | N | K |
---|---|---|---|---|---|---|---|---|
Panel Thickness | See Above | Emboss Squre | Mounting Hole | Gage Width | Panel to Cage | Flange Lip | Cage Height | |
Nominal | Min. | Nominal | ||||||
M6-1.0 | 0.635-1.600 | 2.54 | 13.49 | A or B | 13.21 | 6.35 | 1.52 | 4.32 |
Dimensions in mm
Specification Requirements:
Dimensions: See dimensions above
Nut & Cage Material: 18-8 Stainless Steel
Thread Requirements: 6G
Finish: Per ASTM A380

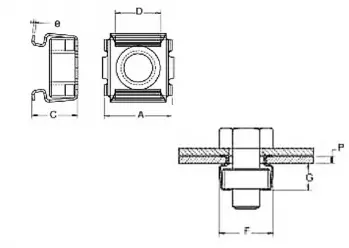

d | P | A | F | G | sq hole | hole r |
---|---|---|---|---|---|---|
M4 | 0.7/1.6 | 10.0000 | 10.0000 | 4.8000 | 6.8000 | 0.5000 |
M4 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M4 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M4 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M4 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M5 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M5 | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
M5 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M5 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M5 | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
M5 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M6 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M6 | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
M6 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M6 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
M6 | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
M6 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
M8 | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
M8 | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
M10 | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
M10 | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |

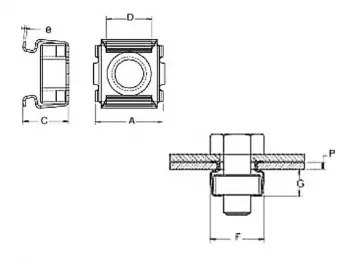

d | P | A | F | G | sq hole | hole r |
---|---|---|---|---|---|---|
1/4UNC | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
1/4UNC | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
1/4UNC | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
1/4UNC | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
1/4UNC | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
1/4UNC | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
5/16UNC | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
5/16UNC | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
3/8UNC | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
3/8UNC | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
