Nuts
Flange Nuts
Flange nuts from ITA Fasteners possess a few of the defining attributes of a washer. They are used to spread the load evenly to avoid uneven fastening surface of the operations. They also ensure that the fasteners are in place without moving about loosely. These wide flange nuts can be used as a replacement to the nut and washer combination. Therefore, these nuts are a cost-effective and quality substitute for nuts and washers if your project is a large scale one.
Flange weld nut come in varying sizes to allow its use with several bolts, each with different dimensional standards. Another advantage of these nuts is that they prevent the loosening of machining and electrical components while still allowing the free parts to move freely. Striking the perfect balance, in this case, has to be done with careful calibrations. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.
JIS B1190, DIN 6923
Metric: M4 to M16
Inches: Nil
Legend:
s - size of the hexagon
e - the diameter of the circumscribed circle (not less than)
m - height of the nut
d - the nominal diameter of the thread
dc - outer diameter of the ring
dw - contact surface diameter
r - radius
Makings:
Steel: 8, 10
Stainless: A2
Plastic: -
Non Ferrous: -
Thread: 6G
Notes:

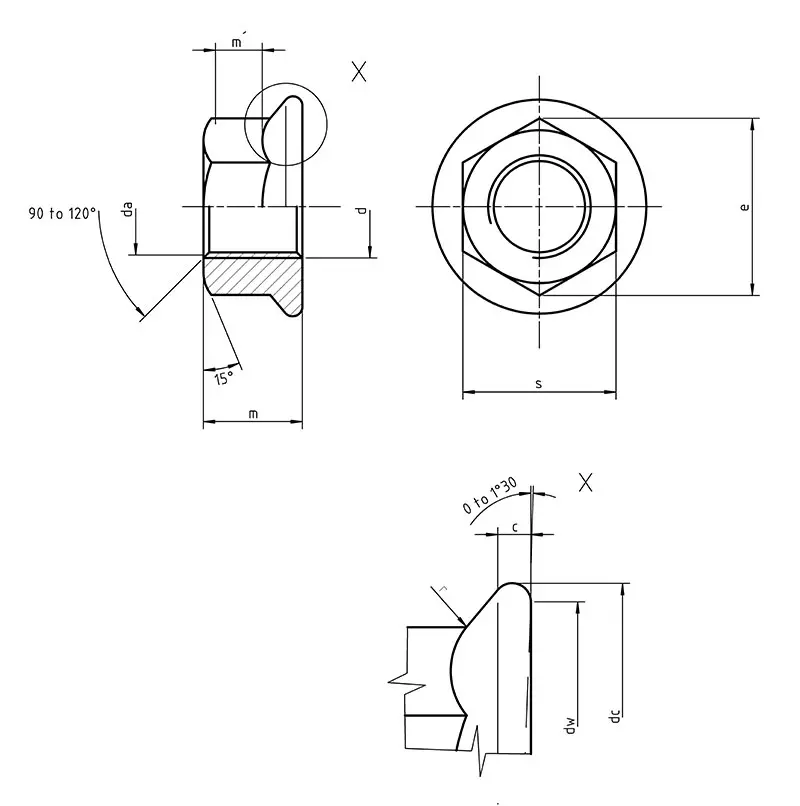

Table according to DIN 6923:
dimensions in mm
| Thread size d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
|---|---|---|---|---|---|---|---|---|---|
| - | - | M8x1 | M10x1,25 | M12x1,5 | M14x1,5 | M16x1,5 | M20x1,5 | ||
| - | - | - | (M10x1) | (M12x1,5) | - | - | - | ||
| P | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2 | 2,5 | |
| c | min. | 1 | 1,1 | 1,2 | 1,5 | 1,8 | 2,1 | 2,4 | 3 |
| d a | min. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| max. | 5,75 | 6,75 | 8,75 | 10,8 | 13 | 15,1 | 17,3 | 21,6 | |
| dc | max. | 11,8 | 14,2 | 17,9 | 21,8 | 26 | 29,9 | 34,5 | 42,8 |
| dw | min. | 9,8 | 12,2 | 15,8 | 19,6 | 23,8 | 27,6 | 31,9 | 39,9 |
| e | min. | 8,79 | 11,05 | 14,38 | 16,64 | 20,03 | 23,36 | 26,75 | 32,95 |
| m | max. | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| min. | 4,7 | 5,7 | 7,6 | 9,6 | 11,6 | 13,3 | 15,3 | 18,9 | |
| m´ | min. | 2,2 | 3,1 | 4,5 | 5,5 | 6,7 | 7,8 | 9 | 11,1 |
| s | nominal=max. | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
| min. | 7,78 | 9,78 | 12,73 | 14,73 | 17,73 | 20,67 | 23,67 | 29,67 | |
| r | max. | 0,3 | 0,36 | 0,48 | 0,6 | 0,72 | 0,88 | 0,96 | 1,2 |

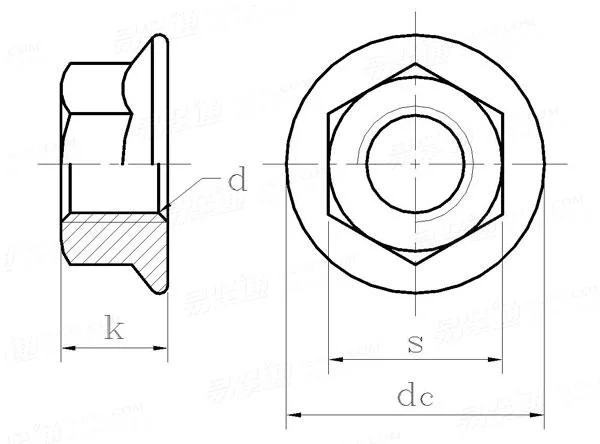

| d | Pitch P | s | k | dc | ||
|---|---|---|---|---|---|---|
| max | min | max | min | max | ||
| M5 | 0.8 | 8 | 7.78 | 5 | 4.7 | 11.8 |
| M6 | 1 | 10 | 9.78 | 6 | 5.7 | 14.2 |
| M8 | 1.25 | 13 | 12.73 | 8 | 7.64 | 17.9 |
| M10 | 1.5 | 15 | 14.73 | 10 | 9.64 | 21.8 |
| M12 | 1.75 | 18 | 17.73 | 12 | 11.57 | 26 |
| M14 | 2 | 21 | 20.67 | 14 | 13.3 | 29.9 |
| M16 | 2 | 24 | 23.67 | 16 | 15.3 | 34.5 |
| M20 | 2.5 | 30 | 29.16 | 20 | 18.7 | 42.8 |

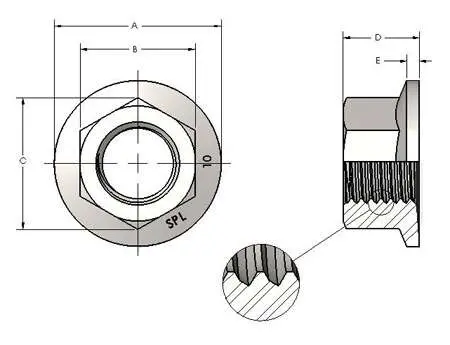

| NOMINAL NUT SIZE | EDP # | A | B | C | D | E | |
|---|---|---|---|---|---|---|---|
| FLANGE DIA. | ACROSS FLATS | ACROSS CORNERS | NUT THICKNESS | MINIMUM FLANGE EDGE THICKNESS | |||
| 5/16 - 18 | F04200M | 0.505 | 0.236 | 0.04 | |||
| F04280M | max. | 0.594 | 0.438 | ||||
| min. | 0.574 | 0.428 | 0.488 | 0.222 | |||
| 5/16 - 18 | F05180M | max. | 0.68 | 0.500 | 0.577 | 0.283 | 0.04 |
| 5/16 - 24 | F05240M | min. | 0.66 | 0.489 | 0.557 | 0.268 | |
| 3/8 - 16 | F06160M | max. | 0.75 | 0.562 | 0.65 | 0.347 | 0.04 |
| 3/8 - 24 | F06240M | min. | 0.728 | 0.551 | 0.628 | 0.33 | |
| 7/16 - 14 | F07140M | max. | 0.937 | 0.688 | 0.794 | 0.395 | 0.04 |
| 7/16 - 20 | F07200M | min. | 0.91 | 0.675 | 0.768 | 0.375 | |
| 41306 | F08130M | max. | 1.031 | 0.750 | 0.866 | 0.458 | 0.05 |
| 43862 | F08200M | min. | 1.000 | 0.736 | 0.84 | 0.437 | |
| 9/16 - 12 | F09120M | max. | 1.188 | 0.875 | 1.01 | 0.506 | 0.05 |
| 9/16 -18 | F09180M | min. | 1.155 | 0.861 | 0.982 | 0.483 | |
| 5/8 - 11 | F10110M | max. | 1.281 | 0.938 | 1.083 | 0.569 | 0.05 |
| 5/8 - 18 | F10180M | min. | 1.248 | 0.922 | 1.051 | 0.545 | |
| 40271 | F12100M | max. | 1.500 | 1.125 | 1.299 | 0.675 | 0.06 |
| 42463 | F12160M | min. | 1.460 | 1.088 | 1.24 | 0.627 | |
| 7/8 - 9 | F14090M | max. | 1.750 | 1.312 | 1.515 | 0.788 | 0.07 |
| 7/8 - 14 | F14140M | min. | 1.706 | 1.269 | 1.446 | 0.735 | |
| 1 - 8 | F16080M | max. | 2.000 | 1.500 | 1.732 | 0.9 | 0.08 |
| 1 - 12 | F16120M | min. | 1.950 | 1.450 | 1.653 | 0.85 |
