Wing Nuts

Description:

Wing nuts from ITA Fasteners come with two flat and wide protrusions which make it easy for frequent adjustments which have to be made by hand. They are commonly adjusted without the help of tools, and for that reason, they are one of the most popular fasteners used for home improvements. They also have sharp aesthetics which make them visually appealing for customers. In its crux, this fastener can be used in applications like machine adjustment knobs where easy and quick access is required.

Please note that these nuts are not suitable to be used in applications which have to withstand many vibrations. This can severely damage the surface onto which it has been fastened and also loosen the nut from its position. Therefore, it is crucial that its vibration handling capacity is thoroughly studied and then used if it is being used in high maintenance and critical applications. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.

Dimensional Standards:

DIN 315, ANSI B 18.17

Size range:

Metric:M3 to M12
Inches: Nil

Wing Nut Dimensions

Dimensions of DIN 315 Wing Nuts

D1	M4	M5	M6	M8	M10	M12	M14	M16	M20	M24
D2 max	8.0	11.0	13.0	16.0	20.0	23.0	28.0	29.0	35.0	44.0
E max	20.0	26.0	33.0	39.0	51.0	65.0	72.0	73.0	90.0	110.0
G max	1.9	2.3	2.3	2.8	4.4	4.9	6.0	6.4	6.9	9.4
H max	10.5	13.0	17.0	20.0	25.0	33.5	36.0	37.5	46.5	56.5
A	8	10	12	16	20	23	23	28	36	45
Weight kg/1000pcs	2	3.5	5.9	8.7	14.8	37.8	75	86	161	260

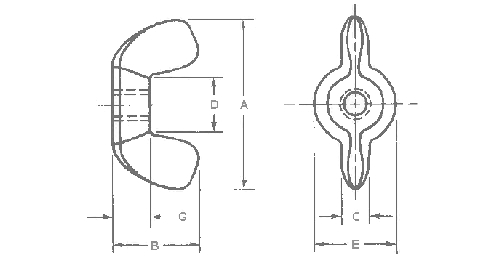

Wing Nut - Inches

All dimensional data is in inches

Size	ThdsperInch	Series	A		B		C		D		E		G
						Wing Spread		Wing Height		Wing Thick		Between Wings		Boss Dia.		Boss Heigh
						max	min	max	min	max	min	max	min	max	min	max	min
3(0.0990)	48,56	Hvy.	0.72	0.59	0.41	0.28	0.11	0.07	0.21	0.17	0.33	0.29	0.14	0.1
4 (0.1120)	40,38	Hvy.	0.72	0.59	0.41	0.28	0.11	0.07	0.21	0.17	0.33	0.29	0.14	0.1
5 (0.1250)	40,	Lgt.	0.72	0.59	0.41	0.28	0.11	0.07	0.21	0.17	0.33	0.29	0.14	0.1
5 (0.1250)	44	Hvy.	0.91	0.78	0.47	0.34	0.14	0.1	0.27	0.22	0.43	0.39	0.18	0.14
6 (0.1380)	32,	Lgt.	0.72	0.59	0.41	0.28	0.11	0.07	0.21	0.17	0.33	0.29	0.14	0.1
6 (0.1380)	40	Hvy.	0.91	0.78	0.47	0.34	0.14	0.1	0.27	0.22	0.43	0.39	0.18	0.14
8 (0.1640)	32,	Lgt.	0.91	0.78	0.47	0.34	0.14	0.1	0.27	0.22	0.43	0.39	0.18	0.14
8 (0.1640)	36	Hvy.	1.1	0.97	0.57	0.43	0.18	0.14	0.33	0.26	0.5	0.45	0.22	0.17
10 (0.1900)	24,	Lgt.	0.91	0.78	0.47	0.34	0.14	0.1	0.27	0.22	0.43	0.39	0.18	0.14
10 (0.1900)	32	Hvy.	1.1	0.97	0.57	0.43	0.18	0.14	0.33	0.26	0.5	0.45	0.22	0.17
12 (0.2160)	24,	Lgt.	1.1	0.97	0.57	0.43	0.18	0.14	0.33	0.26	0.5	0.45	0.22	0.17
12 (0.2160)	28	Hvy.	1.25	1.12	0.66	0.53	0.21	0.17	0.39	0.32	0.58	0.51	0.25	0.2
1/4 (0.2500)	20,	Lgt.	1.1	0.97	0.57	0.43	0.18	0.14	0.39	0.26	0.5	0.45	0.22	0.17
		Reg.	1.25	1.12	0.66	0.53	0.21	0.17	0.39	0.32	0.58	0.51	0.25	0.2
	28	Hvy.	1.44	1.31	0.79	0.65	0.24	0.2	0.48	0.42	0.7	0.64	0.3	0.26
5/16 (0.3125)	18,	Lgt.	1.25	1.12	0.66	0.53	0.21	0.17	0.39	0.32	0.58	0.51	0.25	0.2
		Reg.	1.44	1.31	0.79	0.65	0.24	0.2	0.48	0.42	0.7	0.64	0.3	0.26
	24	Hvy.	1.94	1.81	1	0.87	0.33	0.26	0.65	0.54	0.93	0.86	0.39	0.35
3/8 (0.3750)	16,	Lgt.	1.44	1.31	0.79	0.65	0.24	0.2	0.48	0.42	0.7	0.64	0.3	0.26
3/8 (0.3750)	24	Reg.	1.94	1.81	1	0.87	0.33	0.26	0.65	0.54	0.93	0.86	0.39	0.35
7/16 (0.4375)	14,	Lgt.	1.94	1.81	1	0.87	0.33	0.26	0.65	0.54	0.93	0.86	0.39	0.35
7/16 (0.4375)	20	Hvy.	2.76	2.62	1.44	1.31	0.4	0.34	0.9	0.8	1.19	1.13	0.55	0.51
1/2 (0.5000)	13,	Lgt.	1.94	1.81	1	0.87	0.33	0.26	0.65	0.54	0.93	0.86	0.39	0.35
1/2 (0.5000)	20	Hvy.	2.76	2.62	1.44	1.31	0.4	0.34	0.9	0.8	1.19	1.13	0.55	0.51
9/16 (0.5625)	12, 18	Hvy.	2.76	2.62	1.44	1.31	0.4	0.34	0.9	0.8	1.19	1.13	0.55	0.51
5/8 (0.6250)	11, 18	Hvy.	2.76	2.62	1.44	1.31	0.4	0.34	0.9	0.8	1.19	1.13	0.55	0.51
3/4 (0.7500)	10, 16	Hvy.	2.76	2.62	1.44	1.31	0.4	0.34	0.9	0.8	1.19	1.13	0.55	0.51
