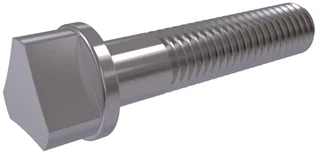

Triangle Head Bolts with Flange

Triangle Head Bolts


Description:

Flanged triangle head bolts from ITA Fasteners are complicated security screws which require special tools to fasten and unfasten. Hence, they find their application in highly secure applications like the construction of ATMs and lockers. They comprise in a single component, a flange headed bolt and triangular heads. Please note that these bolts are not as secure as other security screws and therefore, need to be used with caution especially if the application's security entirely depends on it. Otherwise, these bolts are excellent at providing minimal security at excellent value for money.

They come with a tall triangular head which protrudes out of through the gap. Like we mentioned earlier, these bolts can only be operated using a special wrench. But since these particular security screws are becoming increasingly common, they have to be used with caution and the awareness that anyone with the intent to break into the locker, can purchase the corresponding wrench. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.


Dimensional Standards:

DIN 22424


Size range:

Metric: As Per Requirement
Inches: As Per Requirement

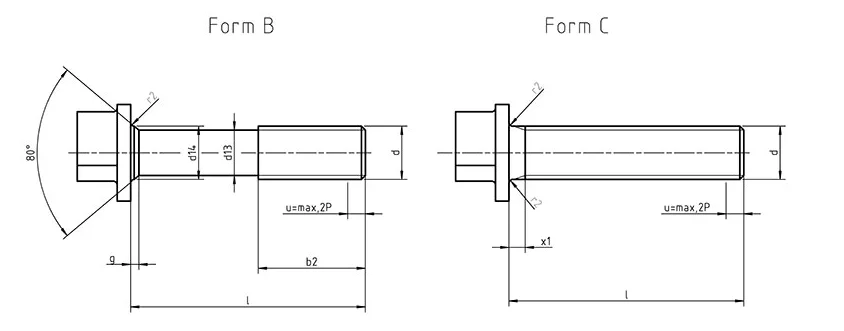

Triangle Head Bolt Dimensions

Triangle head bolt Dimensionas of DIN 22424 triangle head bolt Dimensionas of DIN 22424 triangle head bolt

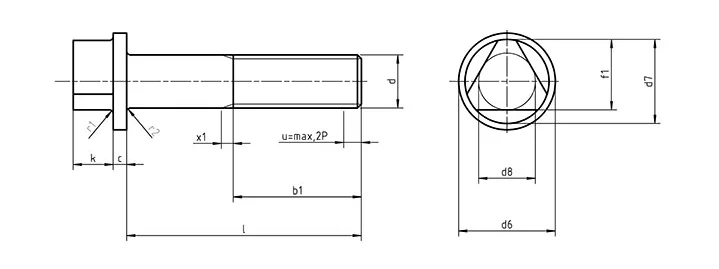

DIN 22424 A - Triangle head bolts

Current norm: DIN 22424

Legend:
d1 - the nominal diameter of the thread
b - length of the thread (at least)
l - length of the bolt
k- head height
c - thickness of the mounting collar
d3 - head diameter
d6 - outer diameter of the ring
d8 - diameter (no more than)
Makings:
Steel:5.8, 8.8, 10.9
Stainless: A2
Plastic: -
Non Ferrous: Brass
Thread: 6g
Table according to DIN 22424:
dimensions in mm

SizeM6M8M10
B1min14,817,819,8
Cmax2,12,42,9
D6max12,215,218,2
D7min11,413,916,9
D8min7,89,311,8
F1min9,5511,5514,3
Kmax4,66,17,7
