Disc Springs

Description:

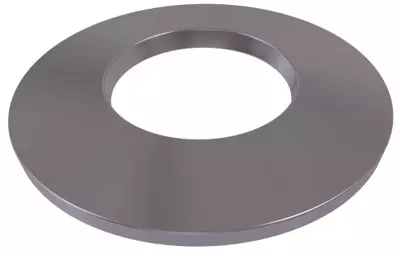

Disc spring washers from ITA Fasteners are angular fasteners with a conical center. They can be oriented in any direction to provide you with maximum versatility. They can be leveraged to provide maximum load bearing abilities in a small area of operation. The opposing force provided by the conical center can act as a powerful deflection combination to provide the structure with a high friction hold.

The washers can be used in series or parallel depending on the applications. In addition to that, they can be used with contact flats to spread the load evenly on uneven surfaces. They are used to convert load into progressive characteristics which complement the structure, equipment or component you are building. They are available in stainless steel, carbon steel, and alloy steel. They are heat treated to provide maximum durability and minimum wear and tear. They also come with an extremely long life, effectively needing replacement only once in a decade.

Dimensional Standards:

DIN 2093

Size range:

Metric: M3 to M130
Inches: As Per Requirement

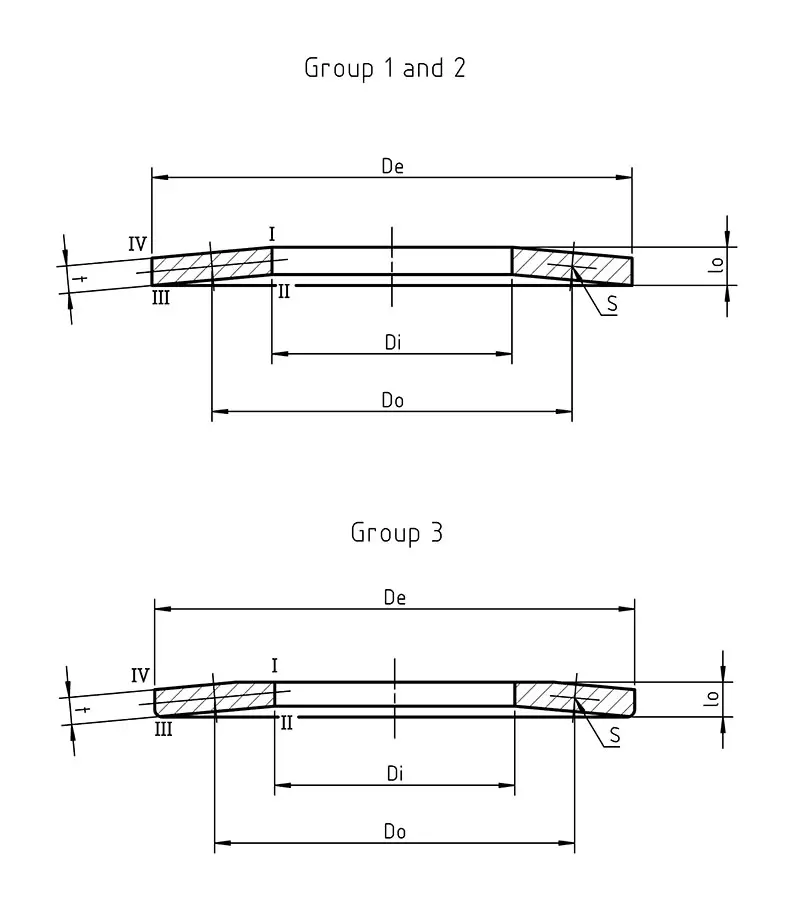

Disc Spring Washer Dimensions

DIN 2093 - Disc Spring Washer

Equivalent norms: UNI 8737;

Legend:
t - Washer width
s - wall thickness
De - outer diameter
Di - Inner diameter
Do - average diameter
lo - height unloaded washers
Makings:
Steel: 4,6
Stainless: A2,A4
Plastic: -
Non Ferrous: -
Thread: -
Notes:
Table according to DIN 2093:
dimensions in mm

Group	De h12	Di H12	t or (t´)	h0	l0	F (N)	s	l0 - s	? OM (N/mm2)	? II (N/mm2)
1	8	4,2	0,4	0,2	0,6	210	0,15	0,45	1200	1220
	10	5,2	0,5	0,25	0,75	329	0,19	0,56	1210	1240
	12,5	6,2	0,7	0,3	1	673	0,23	0,77	1280	1420
	14	7,2	0,8	0,3	1,1	813	0,23	0,87	1190	1340
	16	8,2	0,9	0,35	1,25	1000	0,26	0,99	1160	1290
	18	9,2	1	0,4	1,4	1250	0,3	1,1	1170	1300
	20	10,2	1,1	0,45	1,55	1530	0,34	1,21	1180	1300
2	22,5	11,2	1,25	0,5	1,75	1950	0,38	1,37	1170	1320
	25	12,2	1,5	0,55	2,05	2910	0,41	1,64	1210	1410
	28	14,2	1,5	0,65	2,15	2580	0,49	1,66	1180	1280
	31,5	16,3	1,75	0,7	2,45	3900	0,53	1,92	1190	1310
	35,5	18,3	2	0,8	2,8	5190	0,6	2,2	1210	1330
	40	20,1	2,25	0,9	3,15	6540	0,68	2,47	1210	1340
	45	22,4	2,5	1	3,5	7720	0,75	2,75	1150	1300
	50	25,4	3	1,1	4,1	12000	0,83	3,27	1250	1430
	56	28,5	3	1,3	4,3	11400	0,98	3,32	1180	1280
	63	31	3,5	1,4	4,9	15000	1,05	3,85	1140	1300
	71	36	4	1,6	5,6	20500	1,2	4,4	1200	1330
	80	41	5	1,7	6,7	33700	1,28	5,42	1260	1460
	90	46	5	2	7	31400	1,5	5,5	1170	1300
	100	51	6	2,2	8,2	48000	1,65	6,55	1250	1420
	112	57	6	2,5	8,5	43800	1,88	6,62	1130	1240
3	125	64	8 (7,5)	2,6	10,6	85900	1,95	8,65	1280	1330
	140	72	8 (7,5)	3,2	11,2	85300	2,4	8,8	1260	1280
	160	82	10 (9,4)	3,5	13,5	139000	2,63	10,87	1320	1340
	180	92	10 (9,4)	4	14	125000	3	11	1180	1200
	200	102	12 (11,25)	4,2	16,2	183000	3,15	13,05	1210	1230
	225	112	12 (11,25)	5	17	171000	3,75	13,25	1120	1140
	250	127	14 (13,1)	5,6	19,6	249000	4,2	15,4	1200	1220
